Products specifications

Category Integrated Circuits (ICs)>Interface - Controllers
Mfr Microchip Technology
Package Tray
Protocol USB
Function Hub Controller
Interface I2C, SMBus, SPI, UART
Standards USB 2.0, USB 3.1
Voltage - Supply 1.08V ~ 1.32V, 3V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)

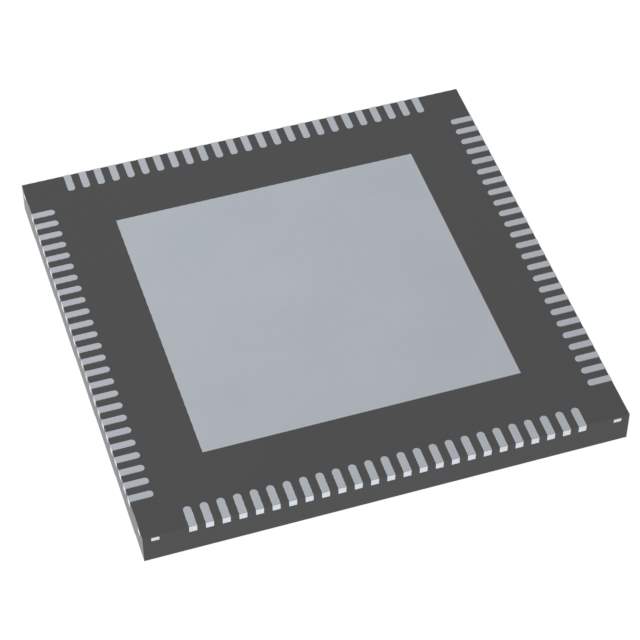

Package / Case 100-VFQFN Exposed Pad
Supplier Device Package 100-VQFN (12x12)
Base Product Number USB5916
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.31.0001
Other Names 150-USB5916C-I/KD
Standard Package 168
Win Source Part Number 964814-USB5916C-I/KD
Ultra Librarian 3D Model Ultra Librarian USB5916C-I/KD CAD Model

Description

The USB5916C-I/KD is a highly integrated USB 2.0 hub controller from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. Designed to support the increasing demand for USB connectivity, this device offers a versatile solution for expanding USB capabilities in various applications.

Key Features

  • Multi-Port Integration: This controller features a 2-port USB 2.0 hub, providing additional USB ports for peripheral connections.
  • High-Speed Interface: With support for high-speed USB 2.0 (480 Mbps), the USB5916C-I/KD ensures fast and efficient data transfers between connected devices.
  • Charge and Sync: It supports Battery Charging Specification 1.2, enabling faster charging for connected devices and facilitating data synchronization.
  • Advanced Power Management: The device offers advanced power management features, including individual port power control, which helps in reducing overall power consumption.
  • Robust Protection: Built-in protection mechanisms guard against overcurrent, overvoltage, and electrostatic discharge (ESD), ensuring the longevity and reliability of both the hub and connected devices.
  • Customizable: The USB5916C-I/KD is highly configurable, allowing designers to tailor its performance to the specific needs of their applications through Microchip's configuration tools.

Applications

The USB5916C-I/KD is suited for a wide range of applications across various industries. It is particularly useful in:

  • Desktop and laptop computers for expanding USB port availability
  • Docking stations and monitors with integrated USB hubs
  • Consumer electronics that require additional USB connectivity
  • Embedded systems and industrial automation for interfacing with multiple USB devices

Quality and Support

Microchip Technology is known for its commitment to quality and long-term reliability. Customers choosing the USB5916C-I/KD can expect robust support, comprehensive technical documentation, and access to Microchip's global customer service network.
