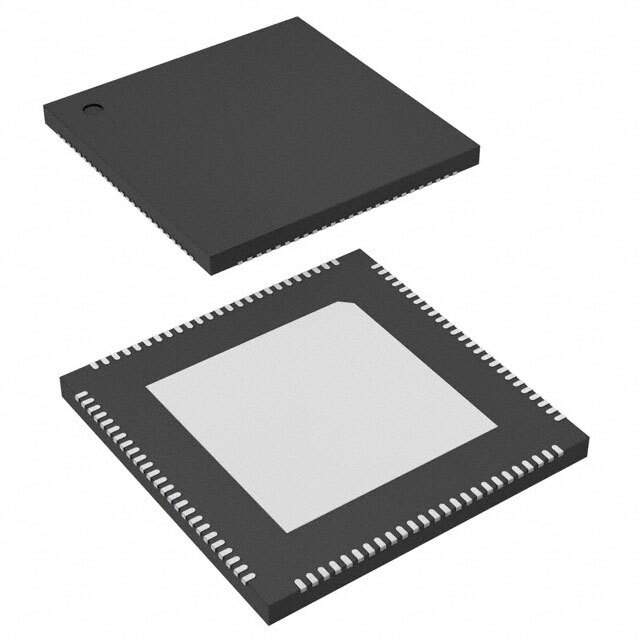

Microchip Technology USB5807-I/KD

The USB5807-I/KD is a state-of-the-art USB 3.1 Gen 1 hub controller from Microchip Technology, designed to offer a seamless and efficient solution for expanding USB capabilities in various electronic devices. This hub controller is part of Microchip's portfolio of USB devices, known for their reliability, performance, and ease of integration.

With seven downstream ports, the USB5807 provides ample connectivity for multiple USB devices, making it an ideal choice for desktop and notebook PCs, docking stations, monitors, and embedded systems that require a significant number of USB ports. Each port supports SuperSpeed USB 3.1 Gen 1 data rates of up to 5 Gbps, ensuring fast data transfer for peripherals such as external hard drives, flash drives, and high-definition cameras.

The device is equipped with an internal regulator, which reduces the need for external components and simplifies the overall design. It also includes Microchip's proprietary MultiTRAK™ technology, which delivers a high-performance data throughput by managing multiple transaction translators. This feature optimizes bandwidth allocation for USB 2.0 devices connected to the hub, ensuring efficient operation even with a mix of USB 3.1 and USB 2.0 devices.

For enhanced power management, the USB5807-I/KD supports individual port power control and over-current protection, which safeguards connected devices from power-related issues. It also offers configurable port indicators (LEDs) for visual feedback on port status, a feature that can be particularly useful for troubleshooting and monitoring purposes.

Designed for ease of use, the USB5807-I/KD requires minimal software and can be configured through pin strapping or EEPROM, allowing for a flexible and user-friendly integration into various system designs. It is also compliant with USB 3.1 Gen 1 and backward compatible with USB 2.0 and 1.1, ensuring interoperability with a wide range of existing USB devices.

Overall, the USB5807-I/KD from Microchip Technology represents a robust and versatile USB hub solution that meets the needs of today's high-speed connectivity requirements, offering designers a reliable and efficient way to enhance the USB capabilities of their products.
