Microchip Technology USB3320C-EZK: High-Speed USB Transceiver

The USB3320C-EZK is a cutting-edge, high-speed USB 2.0 transceiver from Microchip Technology, designed to provide a flexible and robust interface solution for various USB applications. This compact and efficient device is part of Microchip's esteemed family of USB transceivers, known for their reliability and performance in connecting peripherals to USB hosts.

Key Features:

• USB-IF Compliance: The USB3320C-EZK is fully compliant with the USB 2.0 specification, ensuring seamless integration and compatibility with existing USB systems and devices.
• High-Speed Data Transfer: Capable of operating at 480 Mbps, this transceiver is well-suited for applications requiring fast data transfer, such as external storage devices, streaming media, and various communication interfaces.
• Low Power Consumption: Designed with power efficiency in mind, the USB3320C-EZK features a low-power mode to reduce power usage when the device is idle, making it ideal for battery-powered applications.
• UTMI+ Interface: It incorporates a UTMI+ Level 3 interface for easy integration with a USB controller, facilitating a straightforward design process.

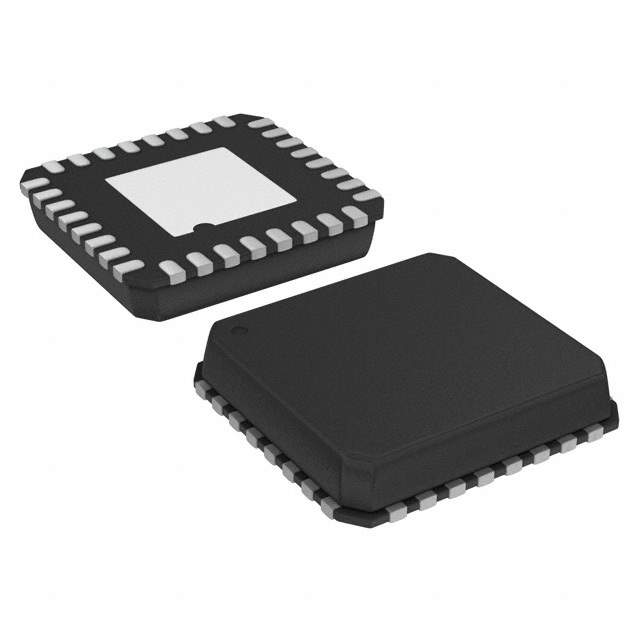

• Small Form Factor: Housed in a space-saving 32-pin QFN package, this transceiver is perfect for portable and space-constrained applications.
• Industrial Temperature Range: With an operating temperature range of -40°C to +85°C, it is reliable in a variety of environments, from consumer electronics to industrial applications.
• Integrated Termination Resistors: The inclusion of integrated termination resistors simplifies the PCB layout and reduces external component requirements.

Applications:

The versatility of the USB3320C-EZK makes it an excellent choice for a wide array of applications, such as:

• Mobile Phones and Smart Devices
• Portable Media Players
• GPS Units
• Industrial Control Systems
• Networking Equipment

Microchip Technology's USB3320C-EZK transceiver is an exemplary solution for developers looking to implement high-speed USB connectivity with minimal design effort and maximum efficiency. Its robust feature set and compliance with industry standards ensure that it will continue to be a go-to component for innovative USB-based designs.
