Microchip Technology TC9400EJD Voltage-to-Frequency/Frequency-to-Voltage Converter

The TC9400EJD from Microchip Technology is a versatile and reliable integrated circuit designed to provide accurate voltage-to-frequency (V/F) and frequency-to-voltage (F/V) conversions. This high-performance device is an essential component for applications requiring frequency or voltage conversion, such as analog-to-digital conversion, long-term integration, frequency-to-voltage conversion, and motor speed control.

With its wide operating voltage range of 4.5V to 18V, the TC9400EJD is suitable for use in a variety of systems, from battery-operated devices to industrial equipment. Its linearity is specified at a remarkable 0.01%, ensuring precision in signal conversion and making it an excellent choice for critical applications where accuracy is paramount.

The TC9400EJD can operate at a frequency range of 0.1Hz to 100kHz, providing a broad spectrum of potential uses. Additionally, the device features a high-impedance input, which minimizes the loading effect on the previous stage and preserves signal integrity. The low power consumption of the TC9400EJD makes it an energy-efficient option for continuous operation in power-sensitive applications.

This versatile converter can be configured for various functions including frequency to voltage conversion, voltage to frequency conversion, and can even act as a frequency doubler with minor adjustments. The inclusion of an onboard voltage reference provides a stable baseline for operations, enhancing the overall stability and accuracy of the system.

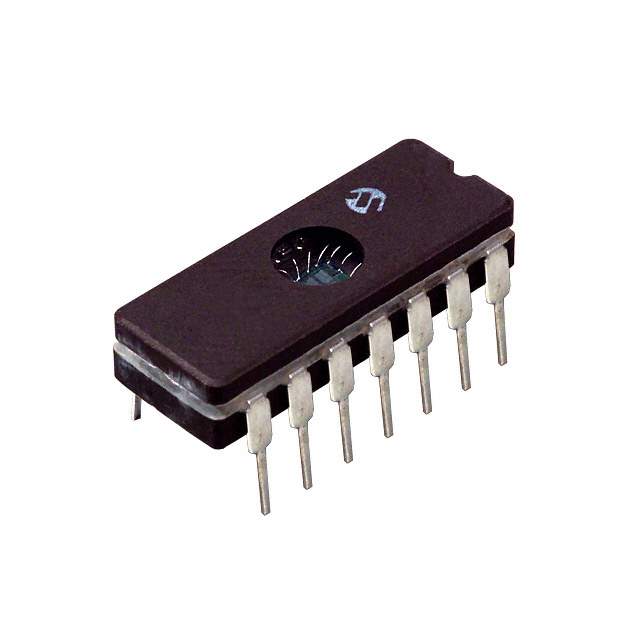

The TC9400EJD is available in a 14-pin CDIP package, ensuring ease of integration into existing designs. Its robust design and reliability make it a favored choice among engineers and designers for developing sophisticated control systems and measurement instruments.

In summary, the TC9400EJD from Microchip Technology stands out as a high-quality, flexible solution for a wide array of V/F and F/V conversion applications, delivering precision, efficiency, and reliability in a compact form factor.
