Microchip Technology TC4421VAT MOSFET Driver

The TC4421VAT is a high-speed, high-current MOSFET driver designed and manufactured by Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions. This particular driver is a part of the TC4421/4422 family, known for its robust performance and ability to efficiently drive a MOSFET, which is crucial in various applications ranging from power supply circuits to motor controllers.

The TC4421VAT is capable of delivering a peak output current of 9A, making it an excellent choice for driving large capacitive loads with rapid switching times. Its high peak current combined with a wide operating voltage range of 4.5V to 18V allows it to accommodate a broad spectrum of power systems and MOSFET gates. Additionally, the device offers protection features such as latch-up immunity, making it more reliable in harsh environments.

This MOSFET driver is designed with a single output and can be used in both inverting and non-inverting configurations, providing flexibility in circuit design. The input to the TC4421VAT is compatible with standard TTL and CMOS levels, which means the driver can easily interface with a variety of logic devices and microcontrollers without the need for additional level-shifting circuitry.

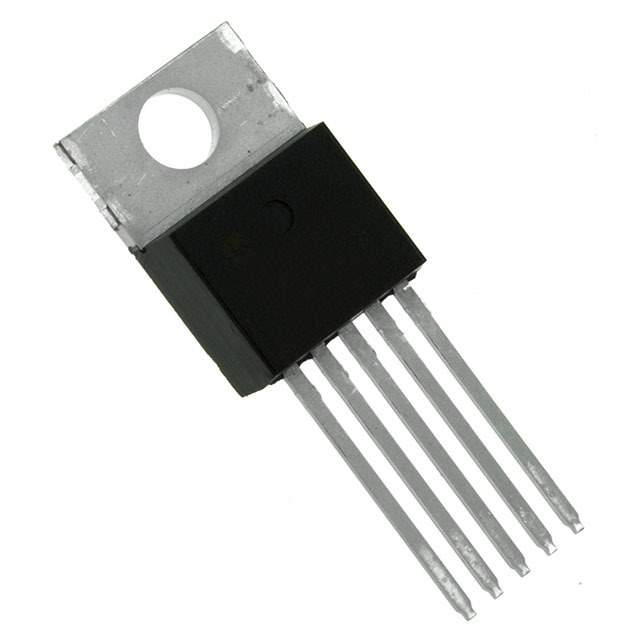

The TC4421VAT comes in a thermally efficient 5-pin TO-220 package, ensuring effective heat dissipation during operation. This is particularly important when the driver is operating at high frequencies or driving large loads, as it helps maintain stability and extends the life of the device.

Key features of the TC4421VAT include its high-speed operation with propagation delays of typically 55ns, which is essential for applications that require fast switching. Moreover, the device possesses a high noise immunity and is designed to be resistant to false operation due to spurious voltage spikes.

Overall, the TC4421VAT from Microchip Technology is a reliable and efficient solution for driving power MOSFETs and IGBTs in a wide array of applications. Its robust design and high performance make it a go-to choice for engineers looking to optimize their power management and conversion systems.
