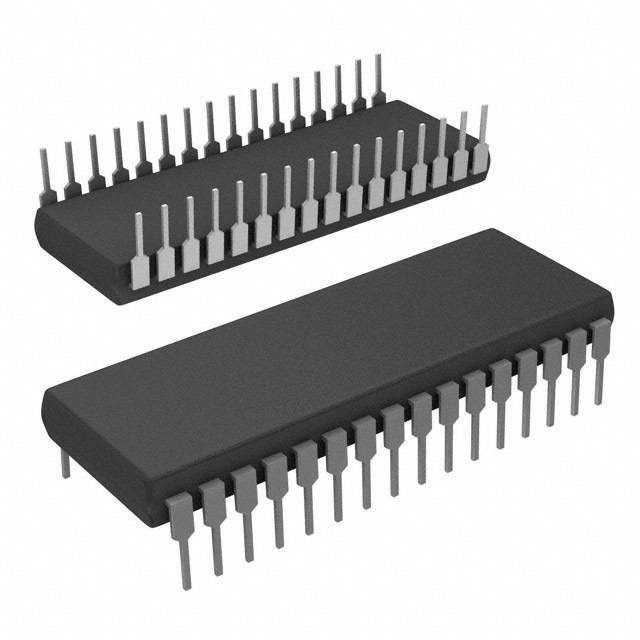

The SST39SF010A-70-4C-PHE is a high-performance CMOS Multi-Purpose Flash (MPF) manufactured by Microchip Technology. This device offers a storage capacity of 1 Megabit (128K x 8) and is designed to provide flexible, reliable, and cost-effective data storage for a wide range of applications.

Key Features

• Memory Organization: The device is organized as 128K x 8 bits, providing a total of 1 Megabit of storage capacity.
• Performance: With a 70 ns access time, this flash memory ensures quick data retrieval, making it suitable for performance-intensive applications.
• Endurance: The SST39SF010A offers a minimum of 100,000 erase/program cycles, ensuring long-term reliability and data retention.
• Single Voltage Read and Write Operations: It operates with a single power supply voltage of 4.5V to 5.5V, simplifying the system power design.
• Low Power Consumption: The device features low power consumption with typical active currents of 10 mA and standby currents of 10 µA, making it an energy-efficient choice for battery-operated devices.
• Superior Reliability: The flash memory boasts data retention of over 100 years, providing peace of mind for applications requiring long-term data storage.
• Programming: The SST39SF010A supports Byte-Program and Multi-Byte Program (up to 32 bytes) operations, offering flexibility and efficiency in programming.
• Software and Hardware Write Protection: The device includes software-enabled data protection and hardware protection features to prevent accidental data corruption.
• Package: Available in a 32-lead PLCC (Plastic Leaded Chip Carrier) package, it is designed for easy integration into various circuit board layouts.

Applications

The versatile nature of the SST39SF010A-70-4C-PHE makes it suitable for a variety of applications, including:

• Embedded systems
• Boot code storage
• Medical devices
• Telecommunications
• Automotive electronics
• Consumer electronics

With its robust design, ease of use, and industry-standard packaging, the SST39SF010A-70-4C-PHE from Microchip Technology is an excellent choice for designers looking to incorporate reliable flash memory into their systems.
