Microchip Technology's PIC24FJ64GU203-I/M5

The PIC24FJ64GU203-I/M5 from Microchip Technology is a high-performance, low-power microcontroller designed for advanced applications in embedded systems. This 16-bit MCU is part of Microchip's PIC24F series, renowned for its efficient operation and versatile features that cater to a broad range of applications, including industrial control, consumer electronics, medical devices, and IoT applications.

Key Features:

• Core: The device features a 16-bit modified Harvard architecture that allows for extensive parallel processing, with a maximum speed of 32 MHz.
• Memory: It comes equipped with 64 KB of Flash memory and 8 KB of RAM, providing ample space for complex programs and data storage.
• USB Connectivity: One of the standout features of the PIC24FJ64GU203-I/M5 is its Full-Speed USB 2.0 On-The-Go (OTG) interface, which enables USB communication without the need for an external USB controller.
• Digital Communication: This MCU includes several communication interfaces, such as I²C, SPI, and UART, allowing for versatile data exchange with peripheral devices.
• Timers and PWM: It is equipped with multiple timers, input capture, and output compare units, as well as PWM modules, which are essential for precise timing operations and motor control.
• Analog Features: The device also provides a 10-bit, 13-channel Analog-to-Digital Converter (ADC) and two comparators, enhancing its capabilities in handling analog signals.
• Power Management: The MCU supports multiple power modes, including Idle and Sleep modes, which significantly reduce power consumption for battery-powered applications.

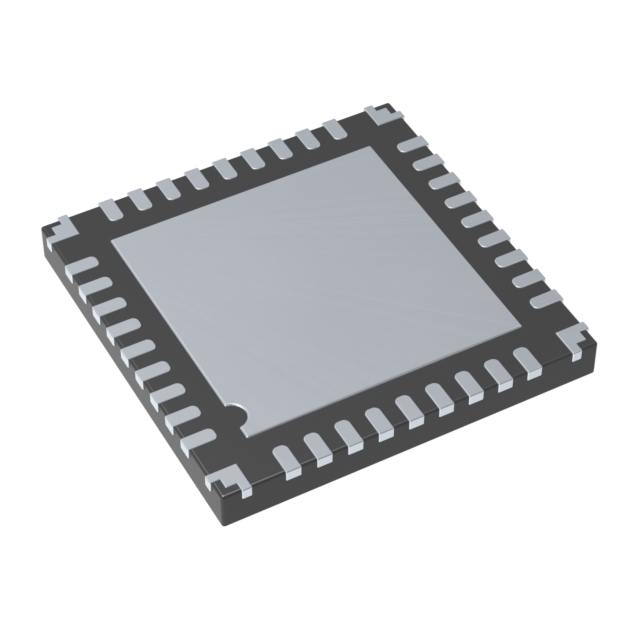

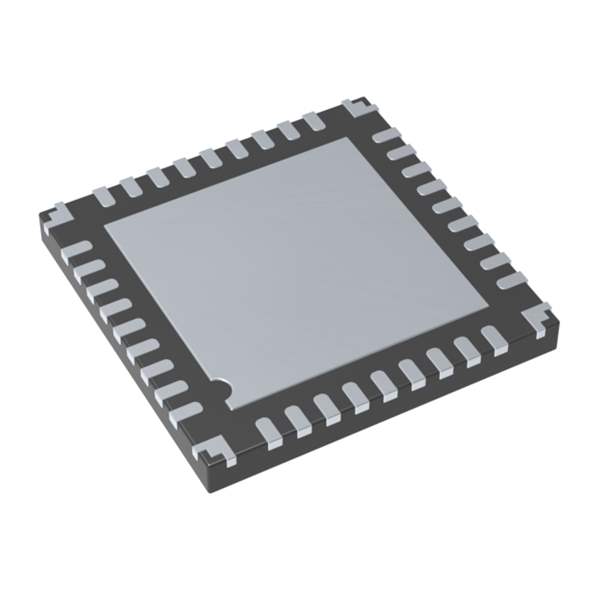

• Package: The microcontroller is available in a compact 28-pin QFN package, making it suitable for space-constrained applications.
• Temperature Range: It operates over an industrial temperature range of -40°C to +85°C, ensuring reliability across various environments.

Applications:

The PIC24FJ64GU203-I/M5 is ideal for applications that require robust performance with stringent power and space constraints. Its USB OTG capabilities make it particularly well-suited for portable devices, while its rich set of peripherals and interfaces makes it a versatile choice for automation systems, smart sensors, and other sophisticated electronic designs.

With its advanced features and reliable performance, the PIC24FJ64GU203-I/M5 is a microcontroller that offers a perfect balance of power efficiency and functionality, making it a go-to choice for engineers and designers looking to push the boundaries of their embedded systems.
