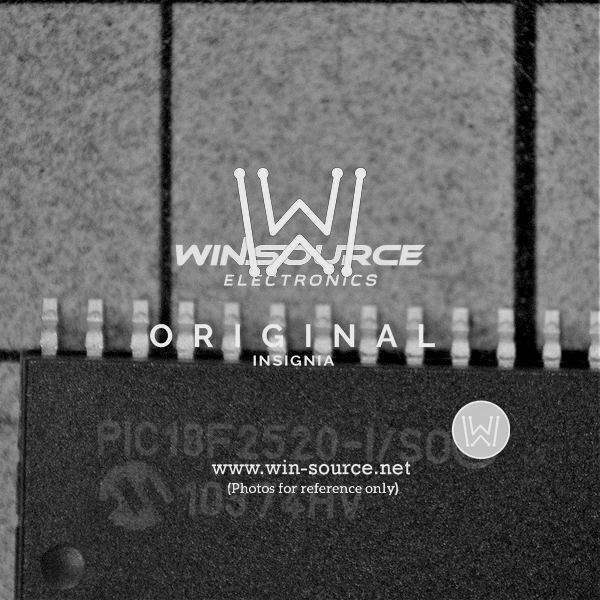

Microchip Technology's PIC18F2520-I/SO Microcontroller

The PIC18F2520-I/SO is a high-performance microcontroller unit (MCU) from Microchip Technology, renowned for its versatility and efficiency in a wide range of embedded applications. This 8-bit MCU is based on Microchip's advanced RISC architecture, providing users with a powerful combination of speed and functionality. The device is housed in a convenient SOIC package, making it suitable for space-conscious designs.

This MCU operates at a maximum frequency of 40 MHz, with a 10 MIPS (Million Instructions Per Second) performance that allows for quick processing and response times. Its enhanced flash program memory of 32KB, along with 1536 bytes of RAM and 256 bytes of EEPROM, provides ample space for complex applications and data storage requirements.

The PIC18F2520-I/SO features a rich set of peripherals that enhance its capabilities. These include:

• 25 I/O pins, which offer flexibility in connecting with other components and devices.
• A 10-bit, 13-channel Analog-to-Digital Converter (ADC), allowing for accurate analog signal measurements and conversions.
• Two Capture/Compare/PWM (CCP) modules, useful for timing and pulse width modulation tasks.
• Enhanced USART modules for serial communication, supporting protocols like RS-232, RS-485, and LIN.
• A Master Synchronous Serial Port (MSSP) module for SPI and I2C communication, facilitating connections with sensors, memory modules, and other ICs.

The MCU also emphasizes power efficiency with its nanoWatt Technology, which includes power-managed modes such as Sleep, Idle, and Doze, significantly reducing power consumption during periods of low activity. This feature makes the PIC18F2520-I/SO an excellent choice for battery-operated and power-sensitive applications.

Programmers will appreciate the MCU's compatibility with Microchip's MPLAB IDE and the availability of a wide range of development tools. This makes prototyping and development both accessible and efficient. The PIC18F2520-I/SO is ideal for industrial control systems, automotive applications, home appliances, and consumer electronics, where reliability and performance are paramount.

Overall, the PIC18F2520-I/SO from Microchip Technology is a robust and feature-rich microcontroller that offers designers a balanced solution for sophisticated and demanding embedded systems.
