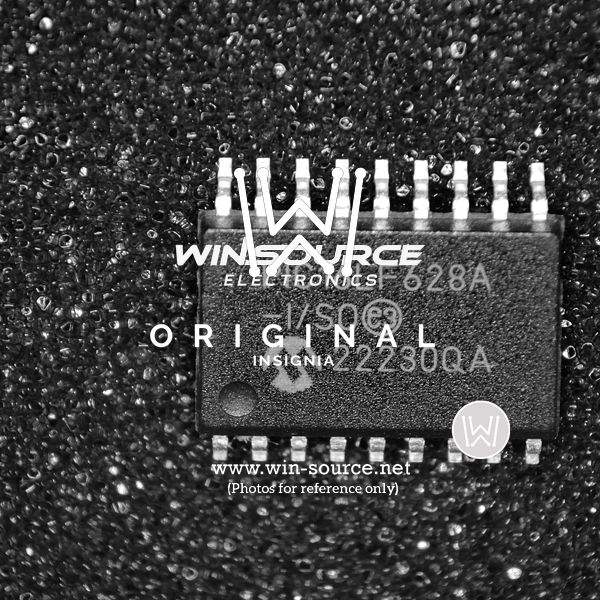

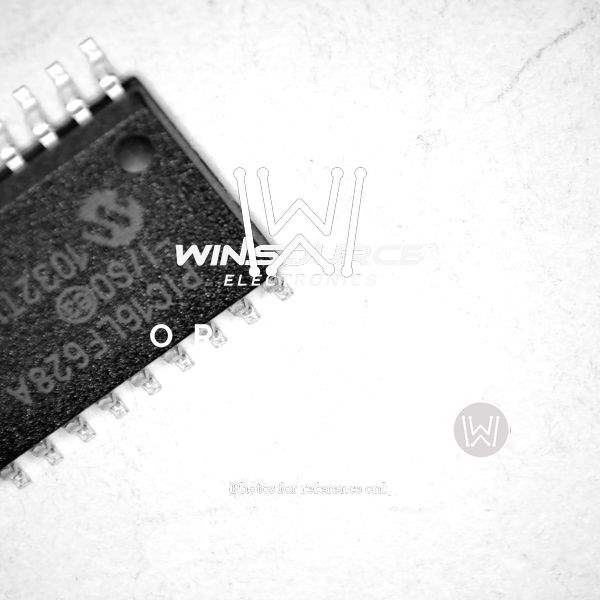

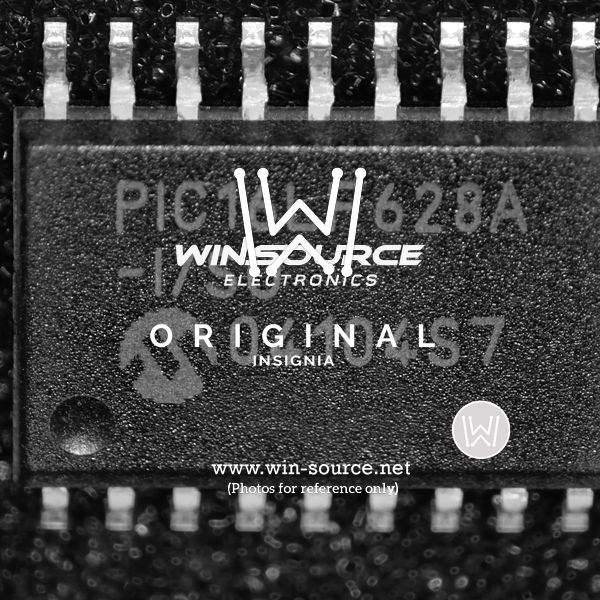

Microchip Technology's PIC16LF628A-I/SO Microcontroller

The PIC16LF628A-I/SO is a powerful, yet compact, 8-bit microcontroller from Microchip Technology, designed to deliver performance and versatility in a range of embedded applications. This particular model comes in a small-outline package (SOIC), making it suitable for space-constrained designs while still offering a robust feature set that allows for sophisticated control and monitoring tasks.

At the heart of the PIC16LF628A-I/SO is a high-performance RISC CPU which provides the efficiency and speed expected of modern microcontrollers. It operates at a maximum speed of 20 MHz and is complemented by 3.5KB of flash memory, which is ideal for storing application code. Additionally, 128 bytes of EEPROM are available, allowing for easy data storage without the need for external memory components.

One of the standout features of the PIC16LF628A-I/SO is its programmable 16-level deep hardware stack, which simplifies the implementation of complex software routines and interrupts. It also boasts a wide operating voltage range of 2.0V to 5.5V, providing flexibility for use in various power environments and ensuring compatibility with both TTL and CMOS logic levels.

The device includes 224 bytes of RAM, ensuring sufficient working memory for variables and data manipulation. The microcontroller also comes with an array of built-in peripherals, including:

• A versatile 18-pin I/O interface, allowing it to connect and communicate with sensors, actuators, and other devices.
• An integrated analog comparator which simplifies analog signal processing and decision-making tasks.
• Two Capture/Compare/PWM (CCP) modules that support advanced timing and pulse width modulation activities, crucial for motor control and other PWM applications.
• A synchronous serial port (SSP) with SPI and I²C capabilities, which enables easy communication with other microcontrollers and peripherals.
• A USART module that provides serial communication for interfacing with PCs, modems, and other serial devices.

Furthermore, the PIC16LF628A-I/SO is renowned for its power-saving features, including a Power-saving Sleep mode, Watchdog Timer, and code protection to prevent unauthorized access to the firmware. These features make it an ideal choice for battery-operated and power-sensitive applications.

Whether you are developing consumer electronics, automotive systems, or IoT devices, the PIC16LF628A-I/SO from Microchip Technology is engineered to meet the demands of your sophisticated projects with its blend of performance, low power consumption, and integrated features.
