Microchip Technology PIC12CE519/JW Microcontroller

The PIC12CE519/JW is a high-performance microcontroller unit (MCU) from Microchip Technology, designed for a wide range of applications that require a compact, yet powerful, programmable solution. This MCU is part of the renowned PIC family, which is celebrated for its ease of use, reliability, and versatility in various electronic designs.

Key Features:

• Core: The device is built around an 8-bit PIC microcontroller core, offering a perfect balance between processing power and energy efficiency, making it ideal for battery-powered and portable applications.
• Memory: It comes with 512 words of program memory and 25 bytes of data RAM, along with an additional 128 bytes of EEPROM for non-volatile storage. This memory configuration allows for robust program and data management, suitable for simple to moderately complex tasks.
• I/O Pins: The MCU provides 6 general-purpose I/O pins, which can be configured for input or output, offering flexibility in interfacing with peripherals such as sensors, switches, and other digital devices.
• Operating Voltage: It operates within a voltage range of 2.0V to 5.5V, accommodating a variety of power sources and ensuring compatibility with both TTL and CMOS logic levels.

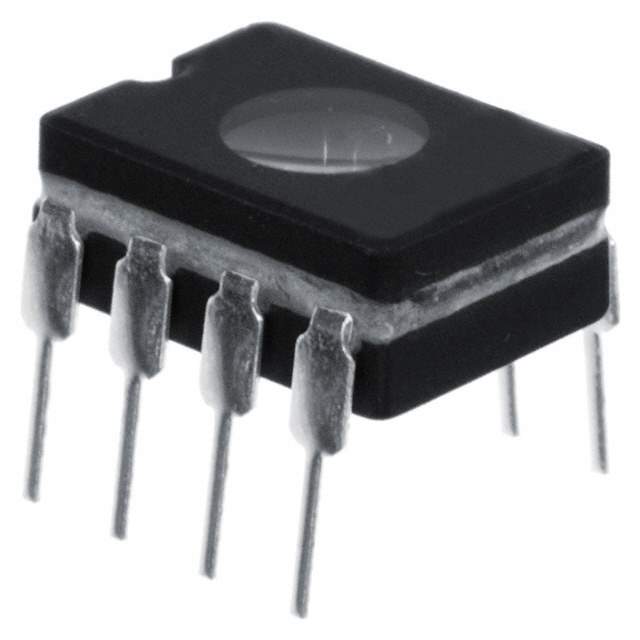

• Package: The PIC12CE519/JW is available in a windowed ceramic JW package, which is suitable for applications requiring exposure to ultraviolet (UV) light for erasing and reprogramming the device.
• Timer: It includes an 8-bit timer and a watchdog timer, which help in managing time-critical operations and system integrity checks.

Applications:

The versatility of the PIC12CE519/JW makes it suitable for a diverse range of applications, including but not limited to:

• Automotive systems
• Consumer electronics
• Industrial controls
• Medical devices
• Security systems
• Small-scale automation projects

With its robust feature set, the PIC12CE519/JW from Microchip Technology stands as an excellent choice for designers looking for a cost-effective, yet powerful microcontroller for their embedded systems. Its JW package also offers the added benefit of being reprogrammable, which is particularly useful for prototyping and iterative development processes.
