Microchip Technology's MCP6022-E/ST Operational Amplifier

The MCP6022-E/ST by Microchip Technology is a high-performance, dual operational amplifier (op-amp) designed for analog applications that require low power consumption and a wide bandwidth. This op-amp is part of Microchip's family of general-purpose, low-power operational amplifiers and is well-suited for a variety of electronic circuits, including filters, sensors, and audio amplifiers.

Featuring a supply voltage range of 2.5V to 5.5V, the MCP6022-E/ST is optimized for low-voltage operation, making it an excellent choice for battery-powered devices and portable applications. The device operates with a quiescent current of just 230 µA (typical), contributing to the overall energy efficiency of the systems it is integrated into.

One of the key attributes of the MCP6022-E/ST is its Rail-to-Rail input and output capability, which allows for the full range of the power supply to be utilized. This feature is particularly useful in single-supply operations, as it maximizes the dynamic range available in the system. The op-amp also boasts a Gain Bandwidth Product (GBWP) of 10 MHz, which provides a wide bandwidth for the amplification of signals.

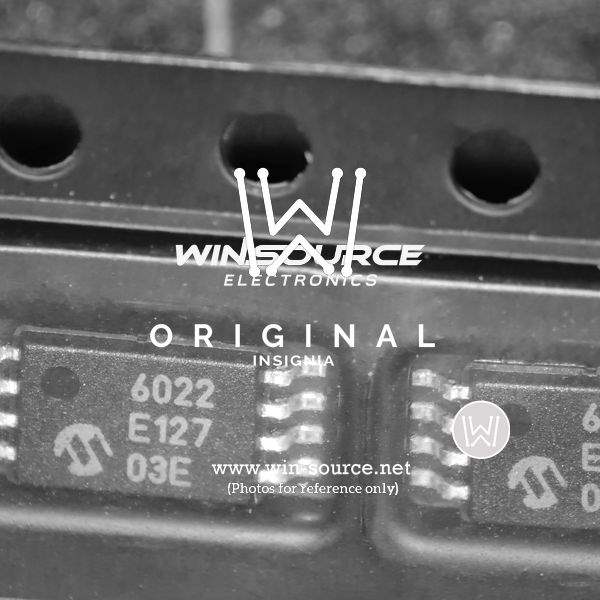

The MCP6022-E/ST comes in a small TSSOP-8 package, which is ideal for space-constrained applications. It also features a chip select (CS) pin that puts the output in a high-impedance state, allowing for multiple devices to be connected to the same bus or filter network without interference.

Additionally, this op-amp is characterized by its low input bias current, low input offset voltage, and high slew rate, which ensures high accuracy and fast response times in precision applications. Its extended temperature range from -40°C to +125°C makes it suitable for industrial and automotive environments where temperature extremes are common.

In summary, the MCP6022-E/ST from Microchip Technology is a versatile, high-performance operational amplifier that offers low power consumption, wide bandwidth, and Rail-to-Rail operation, making it an ideal choice for a broad spectrum of analog applications.
