Microchip Technology MCP4451T-503E/ML Digital Potentiometer

The MCP4451T-503E/ML is a high-performance integrated circuit (IC) from Microchip Technology, designed to function as a digital potentiometer. This versatile electronic component offers a reliable solution for applications requiring precise resistance adjustments through digital control signals. The MCP4451T-503E/ML is a part of Microchip's MCP44XX and MCP45XX series, which are known for their exceptional quality and performance in various electronic systems.

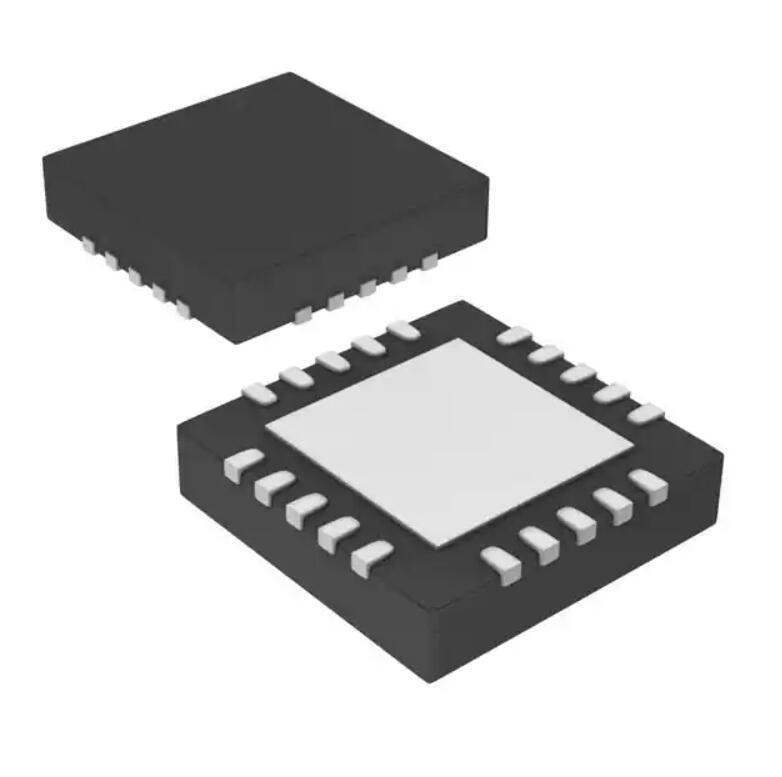

This digital potentiometer comes in a compact 20-lead QFN (Quad Flat No-leads) package, making it suitable for space-constrained applications. It operates over a wide voltage range and provides multiple channels, which makes it an excellent choice for applications that require multiple adjustment points or settings.

Key Features:

• Resistance Value: The MCP4451T-503E/ML offers a resistance value of 50kΩ, which can be adjusted digitally to meet the specific requirements of the application.
• Resolution: It features a resolution of 7-bits (128 wiper steps), allowing for fine-tuning of the resistance values.
• Quad Channel: This device has four potentiometer channels, providing multiple adjustment points in a single IC, which is ideal for parallel processing or multi-point control systems.
• Interface: It incorporates an I²C (Inter-Integrated Circuit) compatible serial interface, facilitating easy integration with microcontrollers and other digital systems.
• Non-Volatile Memory: The onboard non-volatile memory (EEPROM) allows the device to retain the wiper position even after power is removed, ensuring consistent performance across power cycles.
• Temperature Range: Designed to operate over an industrial temperature range of -40°C to +125°C, making it suitable for harsh environments.

The MCP4451T-503E/ML is an ideal choice for applications such as automated calibration, adjustable power supplies, LCD screen adjustment, and audio control systems. Its digital nature allows for programmable settings and remote adjustments, which can be critical for systems that are not easily accessible or require frequent tuning.

With its robust design and versatile features, the MCP4451T-503E/ML by Microchip Technology stands out as a reliable and efficient solution for designers looking to incorporate digital potentiometers into their electronic designs.
