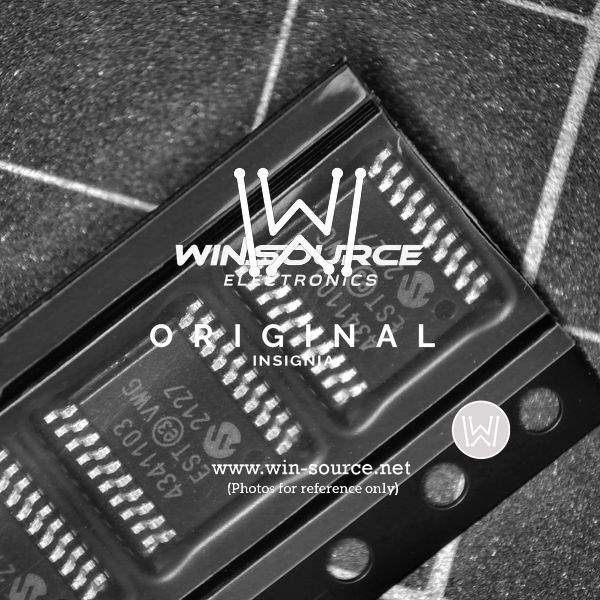

The Microchip MCP4341T-103E/ST is a versatile digital potentiometer that offers a perfect solution for applications requiring a precise and reliable means of adjusting resistance electronically. This compact component is part of Microchip's MCP43XX series, known for their reliability and performance in various electronic circuits.

Key Features:

• Resistance Value: The MCP4341T-103E/ST comes with a 10kΩ nominal resistance, providing a wide range of adjustability for various applications.
• Resolution: It features a 7-bit resolution, equating to 128 wiper steps, allowing for fine adjustments to the resistance level.
• Quad Channel Configuration: This model includes four independent potentiometer elements, offering multiple adjustment points in a single package for complex circuits or multi-channel applications.
• Interface: The device communicates via an I2C™ compatible interface, ensuring easy integration with most microcontrollers and allowing for serial communication in embedded systems.
• Non-volatile Memory: Wiper settings are stored in non-volatile memory (EEPROM), which means the device will maintain the set resistance values even after power is removed.
• Package: The MCP4341T-103E/ST is available in a TSSOP package, making it suitable for surface-mount technology (SMT) and ideal for compact PCB designs.
• Operating Voltage: It operates over a broad voltage range of 2.7V to 5.5V, accommodating various logic levels and power supplies.

Applications:

The MCP4341T-103E/ST digital potentiometer is used in a wide array of applications, including:

• Automated adjustments in consumer electronics
• Calibration and control systems in industrial equipment
• Audio equipment for volume and tone control
• Automotive electronics for sensor trimming and control
• Communication devices for impedance matching

With its precise control and flexibility, the Microchip MCP4341T-103E/ST is an excellent choice for designers looking to add adjustable resistance capabilities to their electronic projects while maintaining a small footprint and high reliability.
