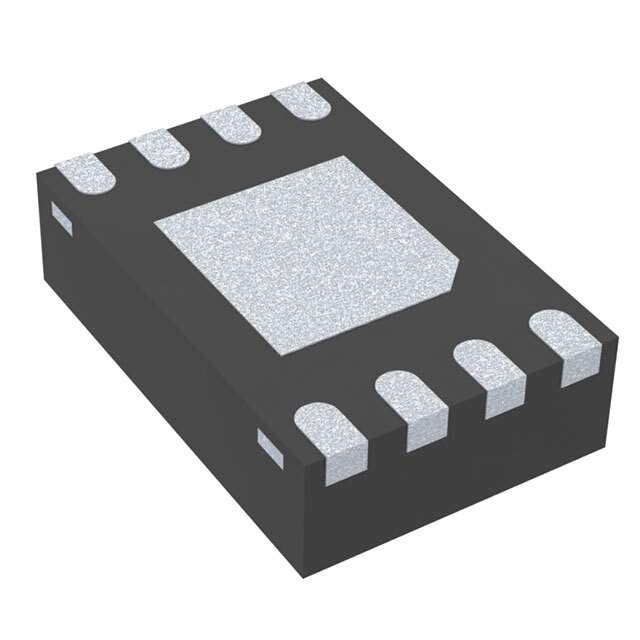

Microchip Technology's MCP4021T-503E/MC Digital Potentiometer

The MCP4021T-503E/MC is a highly integrated digital potentiometer (digipot) designed by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This compact and versatile device offers a reliable solution for applications requiring variable resistance adjustments. The MCP4021T-503E/MC is an ideal choice for fine-tuning and calibration in various electronic circuits, including consumer electronics, industrial equipment, and automotive systems.

Key Features:

• Resistance Value: The device offers a 50kΩ nominal resistance, which provides a wide range for adjustment and flexibility in multiple applications.
• Resolution: With 7-bits (128 wiper steps), the MCP4021T-503E/MC allows for precise control over the resistance settings, making it suitable for fine-tuning applications.
• Interface: The digipot is equipped with an I2C™ compatible interface, ensuring easy integration into most microcontroller-based systems and facilitating simple communication protocols.
• Package: It comes in a compact SOT-23-6 package, which is ideal for space-constrained applications and helps in reducing the overall footprint on the PCB.
• Single Supply Operation: The device operates from a single 2.7V to 5.5V power supply, making it versatile for different voltage environments and simplifying power management.
• Non-volatile Memory: With on-board non-volatile memory, the MCP4021T-503E/MC can retain the wiper position upon power-down, ensuring the system retains its calibration settings.
• Temperature Range: It is designed to operate over the extended industrial temperature range of -40°C to +125°C, ensuring reliable performance under varying environmental conditions.

Applications:

The MCP4021T-503E/MC is suitable for a variety of applications such as:

• Automated adjustments to compensate for system drift
• Volume control in audio systems
• Backlight adjustment for displays and LEDs
• Calibration and tuning in sensors and instrumentation
• Programmable power supplies and battery chargers

With its robust design and versatile features, the MCP4021T-503E/MC by Microchip Technology is an excellent choice for designers who require a reliable and precise variable resistance solution in their electronic designs.
