Microchip Technology MCP2562-E/MF CAN Transceiver

The MCP2562-E/MF is a high-performance CAN (Controller Area Network) transceiver from Microchip Technology, designed to serve as an interface between a CAN protocol controller and the physical two-wire CAN bus. This device is compliant with the ISO 11898 standard, ensuring reliable communication in industrial, automotive, and general embedded networking applications.

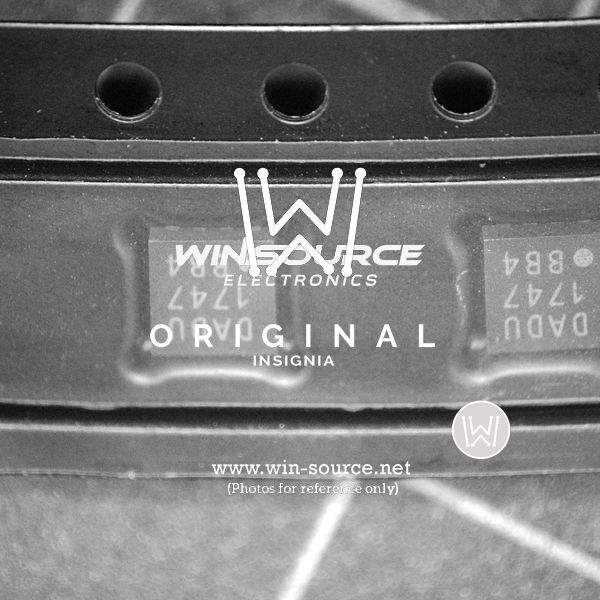

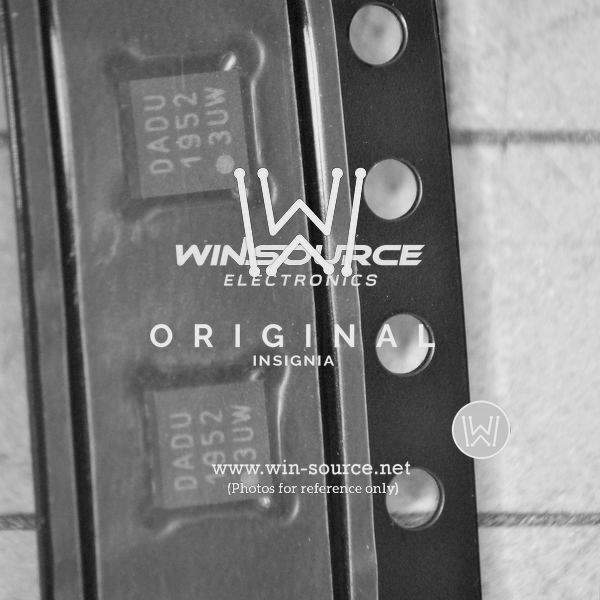

Encased in an 8-pin DFN package, the MCP2562-E/MF offers robust features that make it suitable for harsh environments. It has the capability to operate over a wide temperature range, with the 'E' in its part number signifying an extended operational temperature range of -40°C to +125°C. This makes the MCP2562-E/MF an excellent choice for automotive and industrial applications that require a high level of thermal resilience.

One of the key benefits of the MCP2562-E/MF is its low power consumption, which is critical for power-sensitive applications. It also includes a standby mode that allows the transceiver to power down when not in use, further conserving energy. Moreover, the device has a VIO pin that provides a separate supply voltage for interfacing with 1.8V to 5.5V logic, offering greater flexibility in connecting with various microcontrollers or processors.

For protection, the MCP2562-E/MF is equipped with several features to ensure the stability and integrity of the CAN network. These include high electrostatic discharge (ESD) protection, cross-wire protection, loss of ground and over-temperature protection, as well as voltage brown-out protection. The device's differential output drivers are also designed to be tolerant to high-voltage shorts, adding an extra layer of robustness against potential wiring faults.

In summary, the MCP2562-E/MF from Microchip Technology is a high-quality, feature-rich CAN transceiver that offers reliable performance, low power consumption, and exceptional protection mechanisms. Its small footprint and compatibility with a wide range of microcontroller logic levels make it an ideal choice for designers looking to implement CAN connectivity in their embedded systems.
