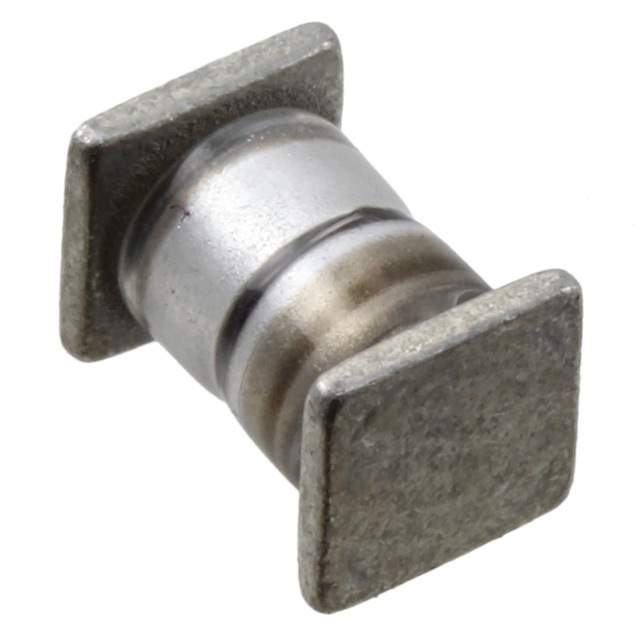

Product Overview: JANTXV1N5822US - Microchip Technology

Microchip Technology's JANTXV1N5822US is a state-of-the-art Schottky barrier rectifier that is specifically designed to meet the rigorous requirements of high-reliability applications. This device is a part of Microchip's extensive range of diodes, which are known for their high performance, durability, and quality.

Key Features

• High Current Capability: The JANTXV1N5822US is capable of handling high current with ease, making it suitable for power regulation in demanding environments.
• Low Forward Voltage Drop: This rectifier offers a low forward voltage drop, which enhances system efficiency by reducing power loss during operation.
• Fast Switching Speed: The device's fast switching speed is ideal for high-frequency applications, ensuring minimal delay in response times.
• Hermetically Sealed: The hermetic seal provides robust protection against environmental factors such as moisture, dust, and other contaminants, thereby ensuring long-term reliability.
• Military-Grade Quality: As a JANTXV level product, it meets the stringent quality standards of the military, including MIL-PRF-19500 specifications.
• High-Temperature Operation: With an operating temperature range that extends from -65°C to 150°C, this diode is designed to function reliably in extreme thermal conditions.

Applications

The JANTXV1N5822US is particularly suitable for use in military and aerospace industries where performance and reliability under harsh conditions are non-negotiable. Its robust design makes it an excellent choice for power supplies, converters, free-wheeling diodes, and reverse battery protection circuits.

Technical Specifications

• Package: Surface Mount DO-213AA
• Peak Repetitive Reverse Voltage: 40V
• Average Rectified Forward Current: 3A
• Forward Surge Current: 80A
• Configuration: Single

The JANTXV1N5822US from Microchip Technology exemplifies the company's commitment to providing components that deliver exceptional performance and reliability. Whether you're designing a power supply for a satellite or a critical piece of military hardware, this Schottky diode is engineered to exceed your expectations.
