Products specifications

Categories Circuit Protection
Estimated Pruduction Lead Time 29 Weeks
Features 63.5V Clamp 45A (8/20µs) Ipp Tvs Diode Surface Mount -
Manufacturer Microchip Technology
Series Military, MIL-PRF-19500/551
Package Bulk
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Surface Mount
Package E-MELF
Family Name 1N6467
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1086-1061, 1086-1061-MIL
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 922334-JANTX1N6467US
Ultra Librarian 3D Model Ultra Librarian JANTX1N6467US CAD Model

Description

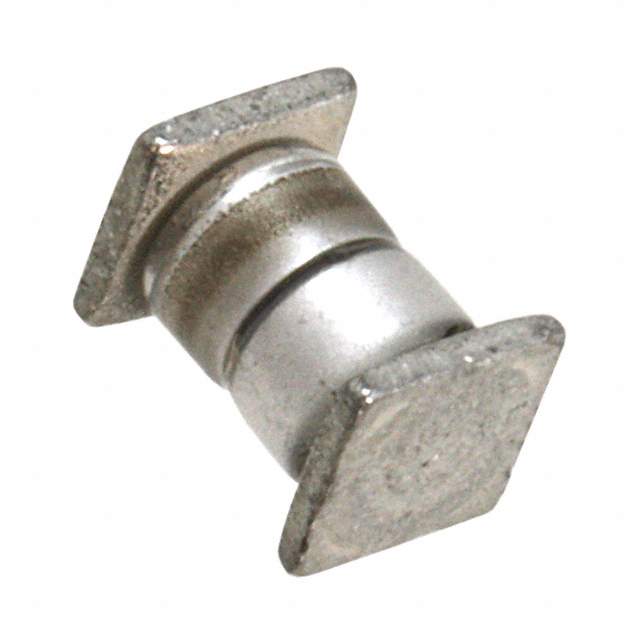

The JANTX1N6467US from Microchip Technology is a robust, high-reliability TVS (Transient Voltage Suppressor) diode designed to provide precision over-voltage protection for sensitive electronics. Engineered for demanding environments, this device is part of the JAN (Joint Army/Navy) series, indicating its suitability for military-grade applications where performance and durability are non-negotiable. The 'US' suffix denotes its ultra-small package, making it ideal for space-constrained applications.

Key Features

  • High Surge Capability: The JANTX1N6467US is capable of clamping and dissipating high transient voltages, safeguarding electronic components from voltage spikes.
  • Low Leakage Current: It exhibits minimal leakage current, ensuring efficient operation and reducing power loss.
  • Fast Response Time: The device responds swiftly to transient overvoltages, providing immediate protection to the circuit.
  • Hermetically Sealed: The diode is hermetically sealed, offering enhanced reliability in harsh environments by preventing moisture and contaminant ingress.
  • Wide Operating Temperature Range: It operates effectively across a broad temperature range, making it suitable for various military and aerospace applications.

Applications

  • Avionics and Aerospace Systems
  • Military and Defense Equipment
  • Spacecraft and Satellite Components
  • High-Reliability Industrial Applications
  • Communication Systems

Specifications

Parameter Value Reverse Standoff Voltage Varies with model Breakdown Voltage Varies with model Clamping Voltage Varies with model Peak Pulse Power Dissipation 1500W @ 10/1000μs Operating Temperature Range -55°C to +175°C

With its robust construction and precise voltage protection capabilities, the JANTX1N6467US is an excellent choice for ensuring the longevity and reliability of critical military and aerospace electronics.
