Products specifications

Categories Circuit Protection

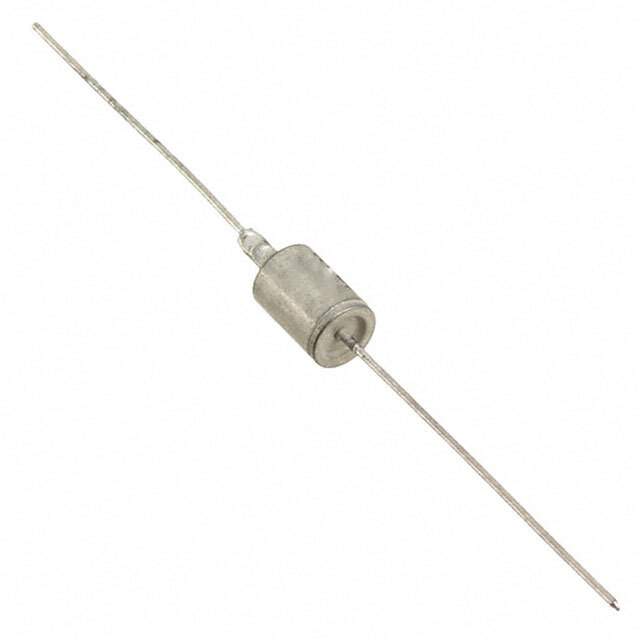

Features 53.9V Clamp 28A Ipp Tvs Diode Through Hole DO-13 (DO-202AA)
Manufacturer Microchip Technology
Series Military, MIL-PRF-19500/500
Package Bulk
Operating Temperature Range -65°C ~ 175°C (TJ)
Mounting Through Hole
Package DO-13
Case / Package DO-13 (DO-202AA)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1086-15801, 1086-15801-MIL
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 922267-JAN1N5647A
Ultra Librarian 3D Model Ultra Librarian JAN1N5647A CAD Model

Description

The JAN1N5647A is a high-precision, durable diode product from Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions. This particular diode is designed to meet stringent specifications, primarily for military and aerospace applications, where reliability and performance are not just requirements but mission-critical elements.

Key Features

  • Voltage Range: This diode offers a wide range of reverse voltage, catering to versatile applications and circuit designs.
  • High Reliability: Built to meet or exceed the rigorous standards of the Joint Army/Navy (JAN) level of the MIL-PRF-19500/470 specification, ensuring top-tier performance and reliability in the most demanding conditions.
  • Temperature Resilience: It operates effectively across a broad temperature range, making it suitable for extreme environments.
  • Package: The JAN1N5647A comes in a hermetically sealed package, which provides enhanced protection against environmental factors like moisture and dust, contributing to its longevity and stability.

Applications

The JAN1N5647A is ideal for a variety of high-reliability applications, including:

  • Power supply circuits
  • Voltage regulation modules
  • Protection circuits
  • Aerospace and defense electronics
  • Satellite and space technology

Quality Assurance

Microchip Technology is committed to providing products that meet the highest quality standards. The JAN1N5647A diode is subjected to rigorous testing and quality control measures to ensure it performs to the specifications under all specified conditions. Customers can trust this product for critical applications where failure is not an option.

Technical Support and Availability

Microchip Technology provides comprehensive technical support for the JAN1N5647A, including detailed datasheets, application notes, and customer support from experienced engineers. The product is available for order through Microchip's extensive distribution network, ensuring availability for both small-scale and bulk requirements.
