Microchip Technology's DSC6021JI2A-002K MEMS Oscillator

The DSC6021JI2A-002K is a cutting-edge MEMS (Micro-Electro-Mechanical Systems) oscillator designed and manufactured by Microchip Technology, a leader in microcontroller, mixed-signal, analog, and Flash-IP solutions. This high-performance, low-power component offers a compelling alternative to traditional quartz crystal oscillators, providing enhanced stability, reliability, and flexibility for a wide range of electronic applications.

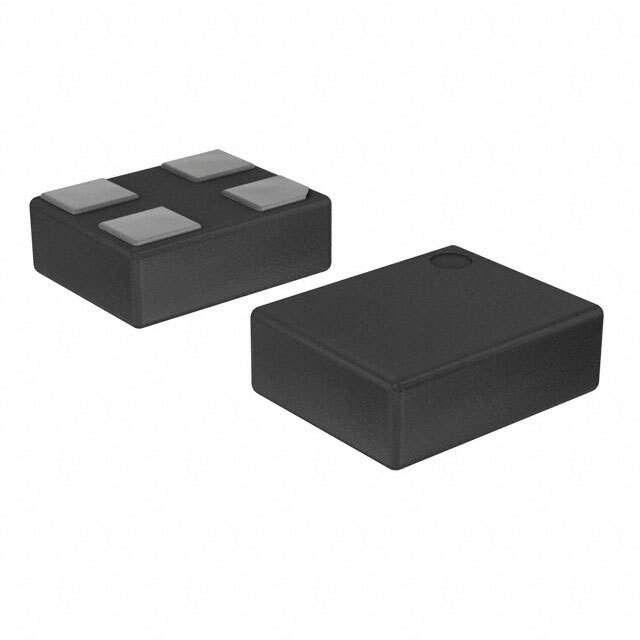

At the core of the DSC6021 series is a MEMS resonator that is temperature-compensated and encapsulated in a miniature 4-pin 2.5x2.0 mm package, making it ideal for space-constrained applications. The DSC6021JI2A-002K operates at a frequency of 2 kHz, which is suitable for various low-frequency requirements, such as RTC (Real Time Clock) applications, and offers a frequency stability of ±25 ppm over the industrial temperature range of -40°C to +85°C.

With a supply voltage range of 1.71V to 3.63V, this oscillator is designed to accommodate a broad spectrum of power supply conditions, ensuring compatibility with a diverse array of electronic systems. Its low current consumption is particularly beneficial for battery-powered devices, thereby extending the operational lifespan and reducing the overall power footprint of the application.

The DSC6021JI2A-002K also boasts a fast start-up time of 5 ms, allowing quick resumption of system operations from a dormant state, which is essential for applications that require rapid wake-up sequences. Furthermore, the oscillator is highly resistant to shock and vibration, making it an excellent choice for industrial and automotive applications where robustness is a critical requirement.

This MEMS oscillator is also RoHS compliant and supports industrial-grade temperature ranges, ensuring its suitability for environmentally sensitive and high-reliability markets. Its programmable drive strength feature allows for optimization of the trade-off between power consumption and electromagnetic compatibility (EMC) performance, providing designers with the flexibility to tailor the oscillator to their specific application needs.

In summary, the DSC6021JI2A-002K from Microchip Technology is a versatile, high-performance MEMS oscillator that offers significant advantages over traditional quartz-based solutions, including superior stability, faster start-up, and greater environmental resilience, making it an excellent choice for a broad range of electronic applications.
