Products specifications

Categories Crystals
Estimated Pruduction Lead Time 34 Weeks
Features 19.2 MHz XO (Standard) CMOS Oscillator 1.8 ~ 3.3V Standby (Power Down) 4-SMD, No Lead
Manufacturer Microchip Technology
Series DSC1001
Package Tube
Operating Temperature Range -20°C ~ 70°C
Mounting Surface Mount
Package 4-SMD, No Lead
Family Name DSC1001
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 110
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 869670-DSC1001CE1-019.2000
Ultra Librarian 3D Model Ultra Librarian DSC1001CE1-019.2000 CAD Model

Description

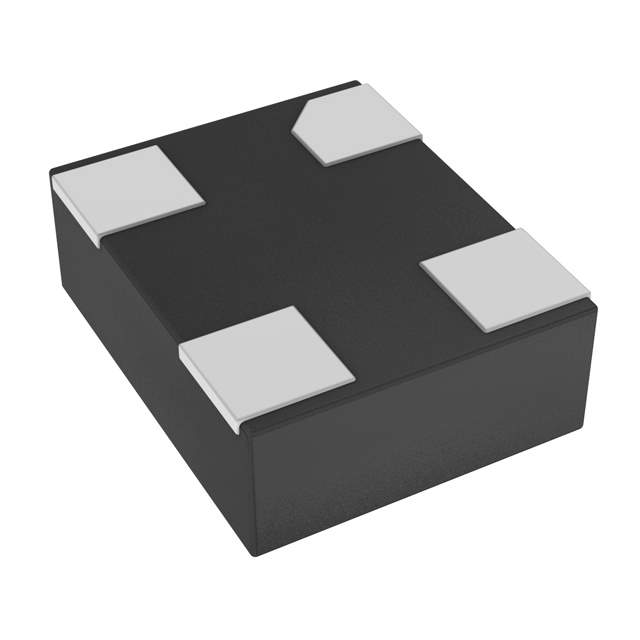

Product Overview: DSC1001CE1-019.2000 from Microchip Technology

The DSC1001CE1-019.2000 is a high-performance silicon MEMS oscillator designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This precision oscillator is part of Microchip's extensive DSC1001 series, known for their reliability and versatility in a wide range of electronic applications. The DSC1001CE1-019.2000 is particularly suited for use in applications requiring a stable and accurate clock source.

Key Features

  • Frequency Range: The DSC1001CE1-019.2000 offers a stable frequency output of 19.200 MHz, which is ideal for timing-sensitive applications.
  • Supply Voltage: It operates at a supply voltage of 1.8V to 3.3V, accommodating various design requirements and ensuring compatibility with a broad range of circuits and systems.
  • Stability: The oscillator provides excellent frequency stability, with a tight stability specification that ensures reliable performance even under varying environmental conditions.
  • Form Factor: It comes in a compact, industry-standard 4-SMD (Surface Mount Device) package, making it easy to integrate into existing designs without the need for significant layout changes.
  • Output Type: The device features a CMOS output, which is a common and versatile logic level compatible with many microcontrollers, FPGAs, and other digital ICs.
  • Temperature Range: The DSC1001CE1-019.2000 is designed to operate over an extended temperature range, making it suitable for industrial and commercial environments.
  • Low Power Consumption: With its low power consumption, this oscillator is an excellent choice for battery-powered and portable applications, where power efficiency is critical.

Applications

The DSC1001CE1-019.2000 is designed for a wide array of applications that require a precise and stable clock source. These applications include but are not limited to:

  • Wireless communication systems
  • Networking equipment such as routers and switches
  • Industrial control systems
  • Consumer electronics
  • IoT devices
  • Wearable technology

Microchip Technology's commitment to quality and performance is evident in the DSC1001CE1-019.2000 oscillator, making it a reliable choice for designers and engineers looking for a clock solution that will enhance the performance and stability of their electronic systems.
