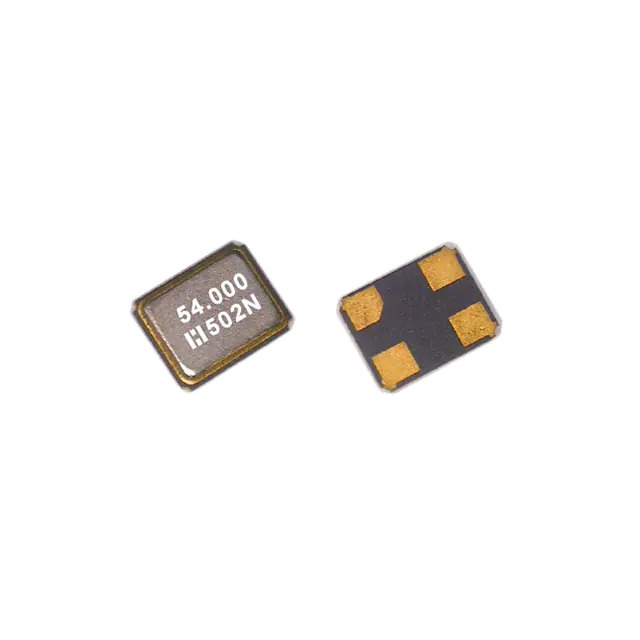

Same model may have multiple batches, images only for reference.
E3SB26E000011E Hosonic Electronic Co., Ltd
Same model may have multiple batches, images only for reference.

E3SB26E000011E

Part No E3SB26E000011E
Manufacturer Hosonic Electronic Co., Ltd
Catalog Oscillators
Description XTAL 3225 26MHZ, 12PF
Datasheet
E3SB26E000011E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Hosonic Electronic Co., Ltd
Series E3SB
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 26 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -30°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.030" (0.75mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1366350-E3SB26E000011E
Ultra Librarian 3D Model Ultra Librarian E3SB26E000011E CAD Model

Description

The E3SB26E000011E is a 26 MHz crystal from Hosonic Electronic Co., Ltd. It belongs to the E3SB series and is designed for fundamental operating mode.

  • Frequency: 26 MHz
  • Series: E3SB
  • Operating Mode: Fundamental
  • Mounting Type: Surface Mount
  • Package / Case: 4-SMD, no lead
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.030" (0.75mm)
  • Temperature Range: -30°C to 85°C
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 12pF
  • REACH: Unaffected
  • ECCN: EAR99
