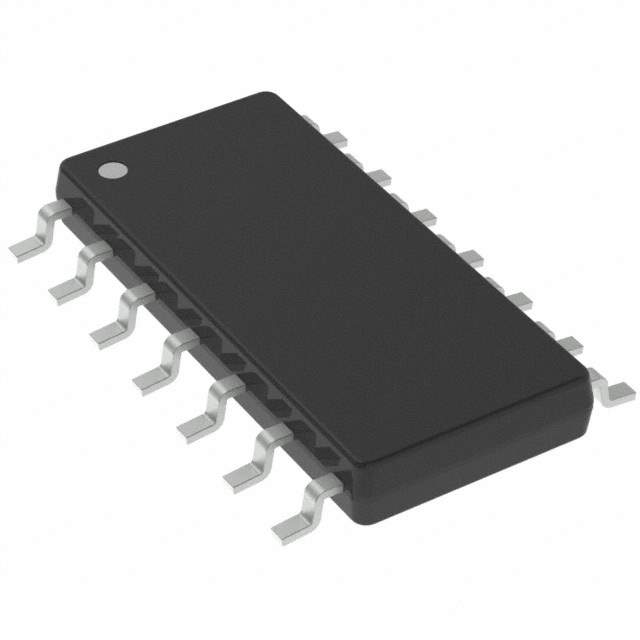

The ATTINY814-SSF from Microchip Technology is a high-performance, low-power AVR® 8-bit microcontroller that combines 8KB ISP flash memory, 512-Byte EEPROM, 2KB SRAM, and a wealth of versatile peripherals. This microcontroller operates within a voltage range of 1.8V to 5.5V, making it suitable for a wide array of applications, from industrial control systems to battery-operated devices.

Key Features

• Advanced RISC Architecture: With 131 powerful instructions, most of which are executed in a single clock cycle, the ATTINY814-SSF achieves throughputs close to 1 MIPS per MHz, balancing power consumption and processing speed.
• Memory: Features 8KB of in-system self-programmable flash memory, 512 bytes of EEPROM, and 2KB of internal SRAM.
• Peripherals: Includes a variety of peripherals such as 12-channel 10-bit A/D converter, a 10-bit D/A converter, programmable serial USART, SPI, and 2-wire interface (I²C).
• Power Efficiency: Offers multiple sleep modes, allowing the system to optimize power consumption versus processing speed.
• Operating Conditions: Capable of functioning across a wide temperature range and voltage spectrum, ensuring reliability and flexibility in diverse environments.
• Configurable Custom Logic (CCL): Provides a set of programmable logic blocks that allow the user to create complex logic functions, enhancing the flexibility and functionality of the microcontroller without additional components.

Applications

The ATTINY814-SSF is designed for use in various applications, particularly where space and power efficiency are critical. These include:

• Consumer Electronics
• Internet of Things (IoT) devices
• Wearable technology
• Industrial control systems
• Battery-operated devices
• Medical monitoring systems

This microcontroller's robust feature set and flexibility make it an excellent choice for designers looking to develop compact, energy-efficient, and powerful electronic products.
