Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Manufacturer Microchip Technology
Packaging Reel - TR
Core Processor AVR
Core Size 8-Bit
Speed 20MHz
Connectivity I2C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 18
Program Memory Size 4KB (2K x 16)
Program Memory Type FLASH
EEPROM Size 256 x 8
RAM Size 256 x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount

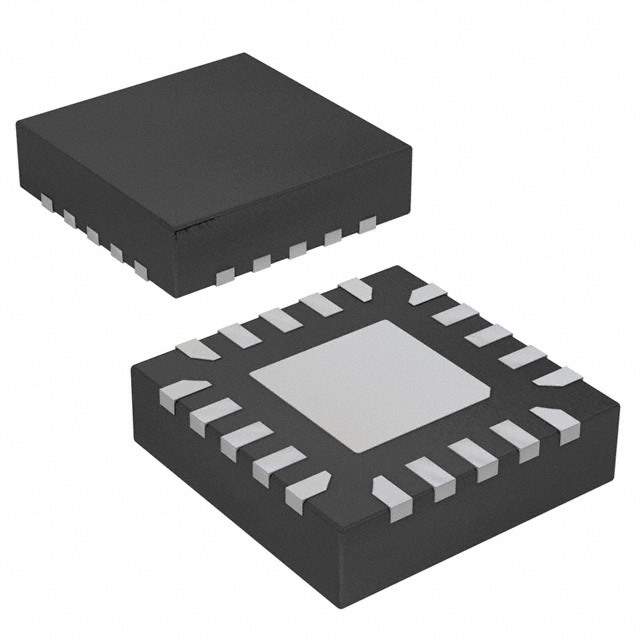

Case / Package 20-VFQFN Exposed Pad
Supplier Device Package 20-VQFN (3x3)
Base Product Number ATTINY4313
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Other Part Number ATTINY4313-MMHRTR,ATTINY4313-MMHR-ND,ATTINY4313-MMHRCT,ATTINY4313-MMHRDKR,ATTINY4313MMHR
Standard Package 6,000
Win Source Part Number 1322249-ATTINY4313-MMHR
Ultra Librarian 3D Model Ultra Librarian ATTINY4313-MMHR CAD Model

Description

Microchip Technology's ATTINY4313-MMHR

The ATTINY4313-MMHR is a high-performance, low-power AVR 8-bit microcontroller from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This versatile microcontroller is part of the popular ATtiny series, designed for a wide range of applications in the industrial, automotive, and consumer electronics markets.

Key Features

  • Advanced RISC Architecture: The ATTINY4313-MMHR boasts a remarkable 131 powerful instructions, most of which are executed in a single clock cycle. This capability enables the microcontroller to achieve throughputs approaching 1 MIPS per MHz, optimizing power consumption versus processing speed.
  • Memory Capacity: It comes with 4KB of in-system programmable flash memory, 256B EEPROM, and 256B SRAM. This combination allows for efficient storage of application code and data.
  • Peripheral Features: This microcontroller includes a range of integrated features such as an 8-channel 10-bit A/D converter, a watchdog timer, and two 8-bit timer/counters with separate prescalers and compare modes. It also has one 16-bit timer/counter with separate prescaler, compare mode, and capture mode, enhancing its functionality in various applications.
  • Operating Conditions: The ATTINY4313-MMHR operates within a voltage range of 1.8-5.5V, making it suitable for operating under varying power supply conditions and for battery-powered applications. It also supports a temperature range of -40°C to 85°C, ensuring reliability in harsh environments.
  • Packaging: The device comes in a 32-lead QFN package, offering a compact footprint for space-constrained applications.
  • Communication: It includes a USART for serial communication, which can be used for interfacing with peripherals such as sensors, actuators, and other microcontrollers or microprocessors.

Applications

The ATTINY4313-MMHR is suitable for a variety of applications, including but not limited to:

  • Consumer Electronics: Remote controls, gaming devices, and personal health monitors.
  • Automotive: Body control modules, sensor nodes, and intelligent lighting systems.
  • Industrial: Monitoring systems, smart sensors, and small automation equipment.

With its rich feature set and compact size, the Microchip ATTINY4313-MMHR microcontroller is an excellent choice for designers looking to create efficient and cost-effective solutions for their embedded systems.
