The ATTINY214-SSN is a high-performance, low-power microcontroller from Microchip Technology, designed to provide a versatile and efficient solution for embedded applications. This microcontroller is part of the tinyAVR® 2-series and is built on a highly-efficient 8-bit AVR® processor with a RISC architecture, making it ideal for a wide range of applications, from consumer electronics to industrial control systems.

Key Features

• CPU Speed: The ATTINY214-SSN operates at a clock speed of up to 20 MHz, providing a balance between power consumption and processing capability.
• Memory: It comes equipped with 2 KB of in-system self-programmable flash memory, 128B EEPROM, and 128B SRAM, which allows for efficient data storage and management.
• I/O and Peripherals: The device offers a variety of peripherals, including a 10-bit Analog-to-Digital Converter (ADC), USART, SPI, and I2C interfaces for communication, and multiple general-purpose I/O pins for interfacing with external components.
• Power Efficiency: With picoPower® technology, the ATTINY214-SSN ensures ultra-low power consumption in both active and sleep modes, making it suitable for battery-operated and power-sensitive applications.

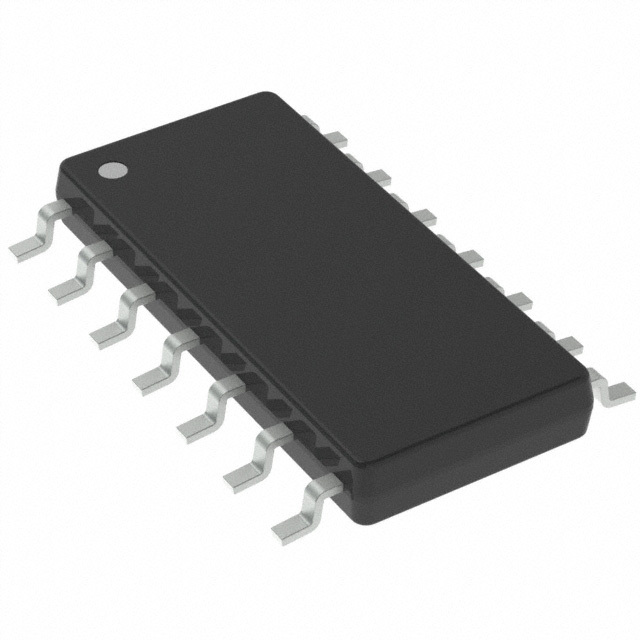

• Package: The microcontroller comes in a compact 14-pin SOIC (SSN) package, which is ideal for space-constrained designs.

Applications

The ATTINY214-SSN is designed for flexibility and can be used in various applications, including:

• Home automation and smart devices
• Battery management systems
• Portable medical devices
• Wearables and fitness equipment
• Industrial control systems

Programming and Software Support

Microchip provides comprehensive software support for the ATTINY214-SSN, with easy-to-use development tools and a robust Integrated Development Environment (IDE). The microcontroller is supported by the Atmel Studio IDE and the MPLAB® X IDE, as well as the MPLAB Code Configurator for simplified configuration and code generation.

With its combination of performance, power efficiency, and rich feature set, the ATTINY214-SSN is an excellent choice for designers looking to develop innovative and reliable products.
