Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features ARM® Cortex®-M0+ series Microcontroller IC 32-Bit 48MHz 256KB (256K x 8) FLASH 45-WLCSP
Manufacturer Microchip Technology
Series SAM D21G, Functional Safety (FuSa)
Package Reel - TR
Core Processor ARM® Cortex®-M0+
Core Size 32-Bit
Speed 48MHz
Connectivity I2C, LINbus, SPI, UART/USART, USB
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 38
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
Supply Voltage 1.62V ~ 3.6V
Data Converters A/D 14x12b; D/A 1x10b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount

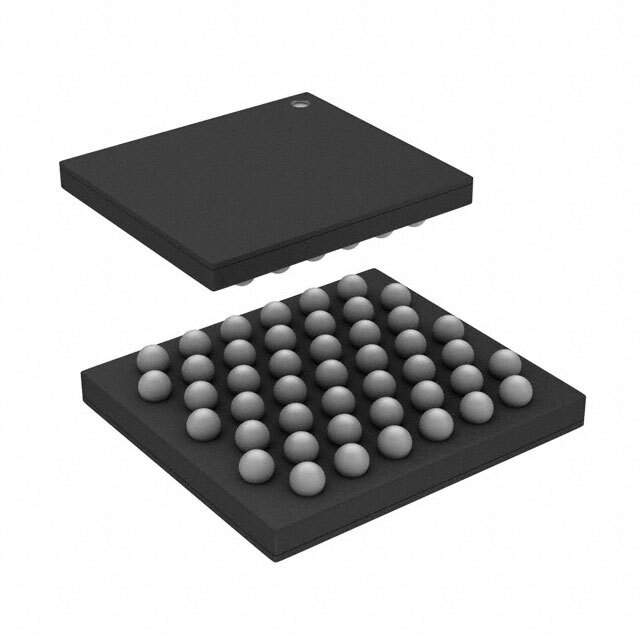

Package 45-XFBGA, WLCSP
Case / Package 45-WLCSP
Family Name ATSAMD21G18
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Other Part Number ATSAMD21G18A-UUTCT, ATSAMD21G18A-UUTDKR, ATSAMD21G18A-UUT-ND, ATSAMD21G18A-UUTTR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 862498-ATSAMD21G18A-UUT
Ultra Librarian 3D Model Ultra Librarian ATSAMD21G18A-UUT CAD Model

Description

Microchip Technology's ATSAMD21G18A-UUT Microcontroller

The ATSAMD21G18A-UUT is a high-performance, low-power microcontroller from Microchip Technology's SAM D21 series, designed to elevate the efficiency and functionality of a wide range of applications. This microcontroller is based on the powerful ARM Cortex-M0+ processor, which operates at a maximum frequency of 48MHz. With its advanced architecture and feature set, the ATSAMD21G18A-UUT is an ideal choice for embedded systems that require a combination of power efficiency and processing capability.

With 256KB of flash memory and 32KB of SRAM, the ATSAMD21G18A-UUT offers ample storage for complex applications and algorithms. The device also includes a variety of peripherals, such as a full-speed USB interface, I2S, and multiple serial communication modules (SERCOM), which can be configured as UART, I2C, or SPI interfaces. This allows for flexible and robust connectivity options to meet the requirements of various communication protocols.

The microcontroller also features a 12-bit ADC with up to 20 channels, offering precise analog to digital conversion for sensor interfacing and data acquisition tasks. Additionally, it comes equipped with a 10-bit DAC, touch sensing capabilities, and various timing and control functions including multiple timers/counters and PWM outputs.

For enhanced security, the ATSAMD21G18A-UUT provides several features, such as a 128-bit AES encryption engine, which ensures secure data transmission and storage. It also includes a unique ID and a secure key storage area, further bolstering the security of user applications.

Designed with power efficiency in mind, the microcontroller supports multiple power-saving modes, making it an excellent choice for battery-powered and portable devices. Developers can leverage these modes to significantly extend battery life while maintaining responsive performance.

The ATSAMD21G18A-UUT is available in a 48-pin TQFP package and is fully supported by Microchip's development ecosystem, which includes the Atmel Studio IDE, Atmel START software configuration platform, and a wide range of development boards. This robust support simplifies the development process, enabling rapid prototyping and streamlined production of applications ranging from IoT devices and sensor hubs to control systems and consumer electronics.

Overall, the ATSAMD21G18A-UUT by Microchip Technology offers a balance of performance, power efficiency, and security, making it a versatile choice for designers looking to create advanced, reliable, and efficient embedded systems.
