Microchip Technology's ATSAMD20E15B-MUT Microcontroller

The ATSAMD20E15B-MUT is a powerful and versatile 32-bit microcontroller from Microchip Technology, designed to offer an optimal balance between performance and power consumption. This microcontroller is part of the SAM D20 family, which is based on the high-performance ARM Cortex-M0+ processor. The device operates at a maximum frequency of 48MHz and features 32KB of flash memory and 4KB of SRAM, making it an ideal choice for a wide range of applications.

Key Features

• Core: ARM Cortex-M0+ CPU running at up to 48MHz
• Memory: 32KB in-system self-programmable flash, 4KB SRAM
• I/O Pins: 26 General Purpose I/O lines
• Interfaces: I2C, SPI, and USART interfaces for serial communication
• ADC: 12-bit Analog-to-Digital Converter with up to 10 channels
• Timers: Three 16-bit Timer/Counters, one 8-bit Timer/Counter, and one Real-Time Counter
• Touch Support: Integrated hardware support for capacitive touch sensing
• Supply Voltage: 1.62V to 3.63V operation

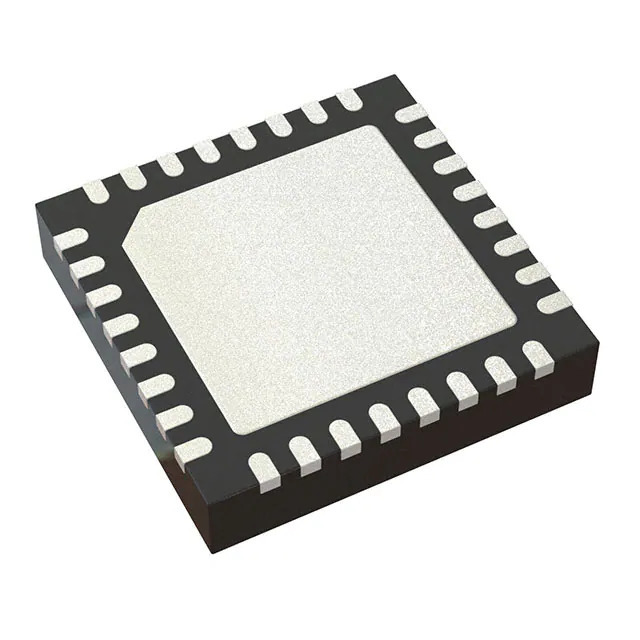

• Package: 32-pin QFN package for space-constrained applications
• Temperature Range: -40°C to +85°C operational range

Applications

The ATSAMD20E15B-MUT is suitable for a variety of applications, including but not limited to industrial control systems, consumer electronics, Internet of Things (IoT) devices, and battery-operated products. Its low power consumption and rich set of peripherals make it particularly well-suited for sensor management, LED lighting controls, and touch-enabled devices.

Design Support

Microchip Technology provides comprehensive support for the ATSAMD20E15B-MUT, including development tools, software libraries, and documentation to assist designers in accelerating their product development cycles. The Atmel Studio Integrated Development Environment (IDE) and the Atmel Software Framework (ASF) offer a robust platform for code development and debugging.

With its integration of performance, power efficiency, and extensive peripheral set, the ATSAMD20E15B-MUT stands out as a microcontroller that can meet the demands of modern embedded design.
