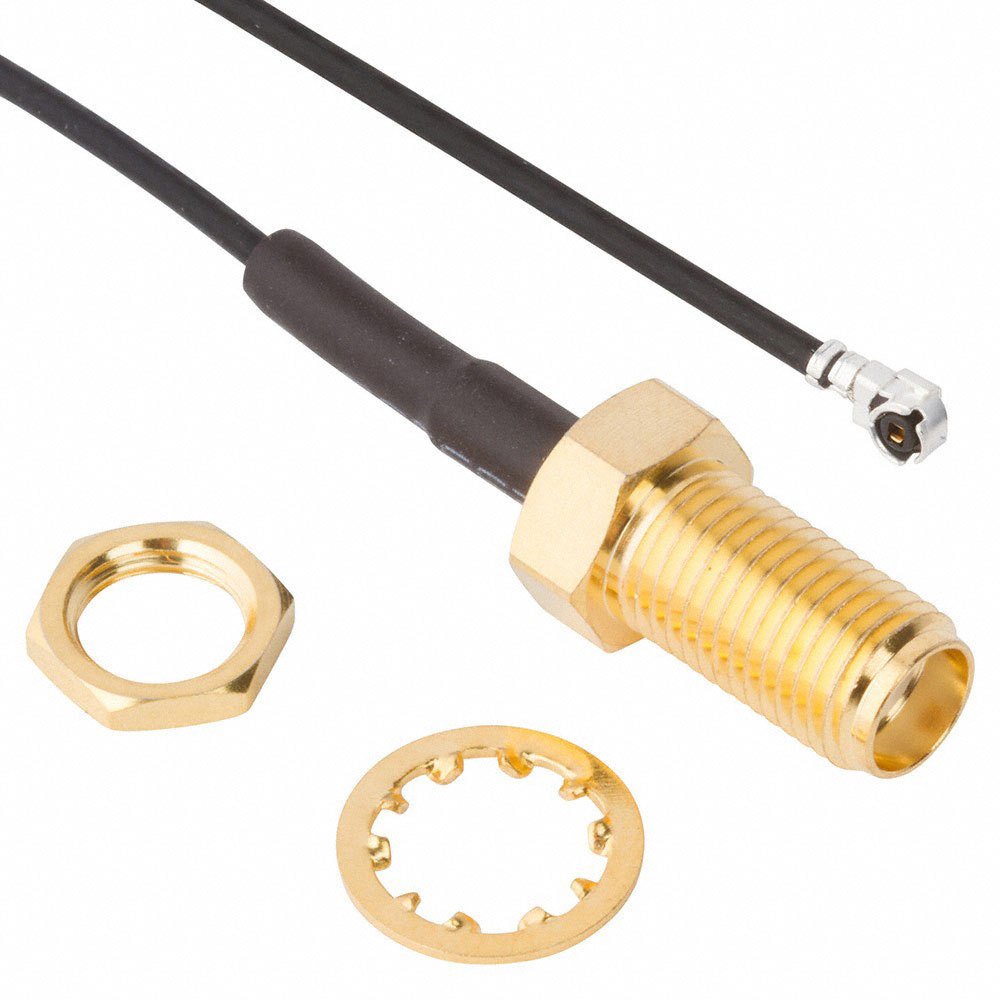

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Amphenol RF Division
Status Active
Gender Female to Female
Style SMA to UMC
1st Connector SMA Female Jack
2nd Connector Ultra Miniature Coaxial Plug Female Socket, Right Angle
Length 9.843" (250.00mm)
Cable Type 1.32mm OD Coaxial Cable
Impedance 50 Ohm
Maximum Input Frequency 6GHz
Win Source Part Number 182759-RF2370
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF2370 CAD Model

Description

The Amphenol RF Division 182759-RF2370 is a female to female cable assembly with a length of 9.843 inches (250.00mm) and a 1.32mm OD coaxial cable.

  • Impedance: 50 Ohm
  • Maximum Input Frequency: 6GHz
  • First Connector: SMA female jack
  • Second Connector: ultra miniature coaxial plug female socket, right angle
  • Popularity: medium
  • Supply and Demand Status: limited
