Microchip Technology ATA6844-PLQW-1 Motor Driver

The ATA6844-PLQW-1 is a high-quality motor driver integrated circuit (IC) from the renowned manufacturer Microchip Technology. This advanced IC is designed to deliver efficient and reliable control for a variety of motor types, making it an ideal solution for automotive applications, including but not limited to, window lifters, sunroofs, wipers, and blowers.

Engineered to handle the demanding environments of automotive applications, the ATA6844-PLQW-1 boasts a robust design that ensures consistent performance across a wide temperature range. Its integrated features include a voltage regulator, LIN transceiver, and watch-dog, all of which contribute to its high level of integration and reduced system complexity. This also allows for a reduction in external components, leading to cost savings and a more compact overall design.

The IC's power stage is designed to drive six independent PWM-controlled outputs, which are capable of delivering high currents to the motors. Moreover, it comes with built-in protection features such as overcurrent, overtemperature, and undervoltage shutdown, ensuring the safety and longevity of the application it is used in.

The ATA6844-PLQW-1 is also notable for its ease of use. It supports a wide range of supply voltages, from 5.5V to 28V, accommodating various power requirements with ease. The inclusion of a LIN 2.0 transceiver with a baud rate of up to 20kbaud makes it simple to integrate into a Local Interconnect Network (LIN) bus system, providing reliable communication with other devices.

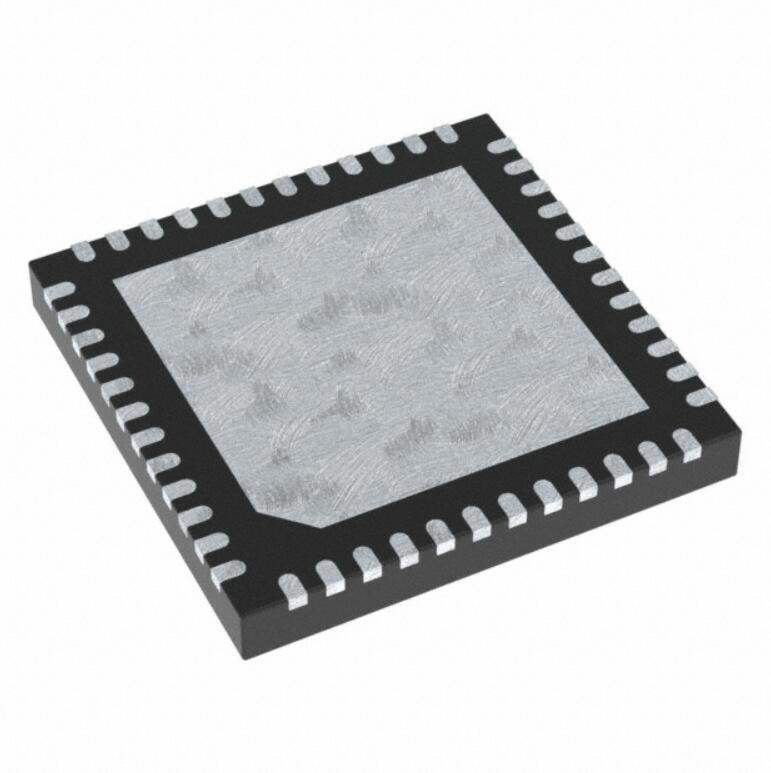

With its QFN48 (7x7) package, the ATA6844-PLQW-1 is not only space-efficient but also offers excellent thermal performance. This, combined with its comprehensive diagnostic and protective features, makes the ATA6844-PLQW-1 a highly reliable and efficient choice for designers looking to enhance their automotive systems.

Whether for upgrading existing systems or developing new innovative automotive solutions, the ATA6844-PLQW-1 from Microchip Technology stands out as a versatile and powerful motor driver that meets the stringent requirements of the modern automotive industry.
