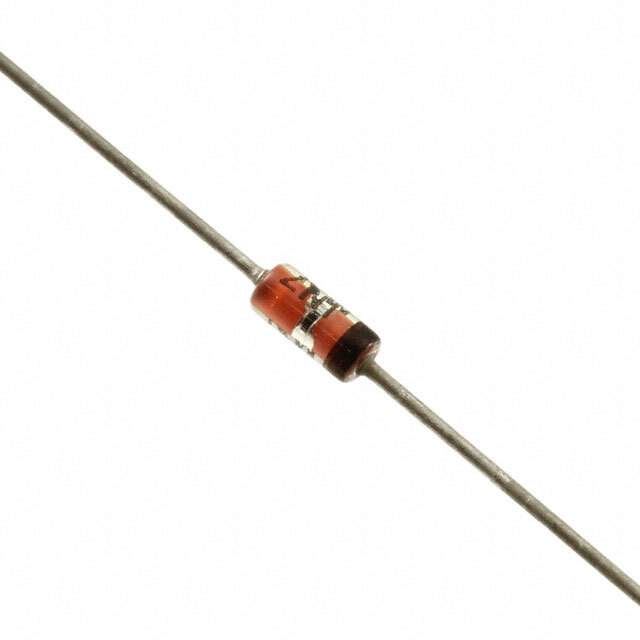

The 1N755A-1 is a precision Zener voltage regulator diode, manufactured by Microchip Technology. With its tight voltage regulation and high stability, this diode is designed to offer a reliable solution for applications requiring voltage regulation within a small tolerance. It is commonly used in power supplies, voltage reference circuits, and as a protector for sensitive electronic components from overvoltage conditions.

Key Features

• Nominal Zener Voltage: The 1N755A-1 provides a nominal Zener voltage of 7.5V, making it suitable for a variety of 7V applications.
• Tolerance: This diode features a tight voltage tolerance of ±5%, ensuring precise voltage regulation for sensitive circuits.
• Power Dissipation: It has a standard power dissipation of 500mW, which allows it to handle moderate power levels in compact designs.
• Package: The device is available in a DO-35 glass package, which is known for its durability and reliability in various environmental conditions.
• Operating Temperature Range: The 1N755A-1 can operate over a wide temperature range, from -65°C to +175°C, making it versatile for different operating environments.
• Test Current: It has a test current (I_ZT) of 5.2 mA, which is the current at which the Zener voltage is measured and guaranteed.

Applications

The 1N755A-1 Zener diode is ideal for use in a range of electronic applications, including but not limited to:

• Voltage regulation modules
• Overvoltage protection circuits
• Switching power supplies
• Electronic tuners
• Precision reference circuits

With its precise voltage control and robust design, the 1N755A-1 from Microchip Technology is a go-to component for engineers and designers looking to enhance the stability and performance of their electronic systems.
