Same model may have multiple batches, images only for reference.

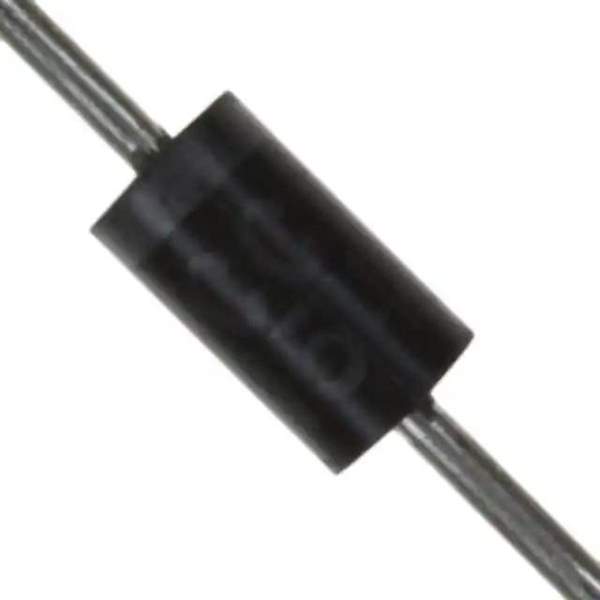

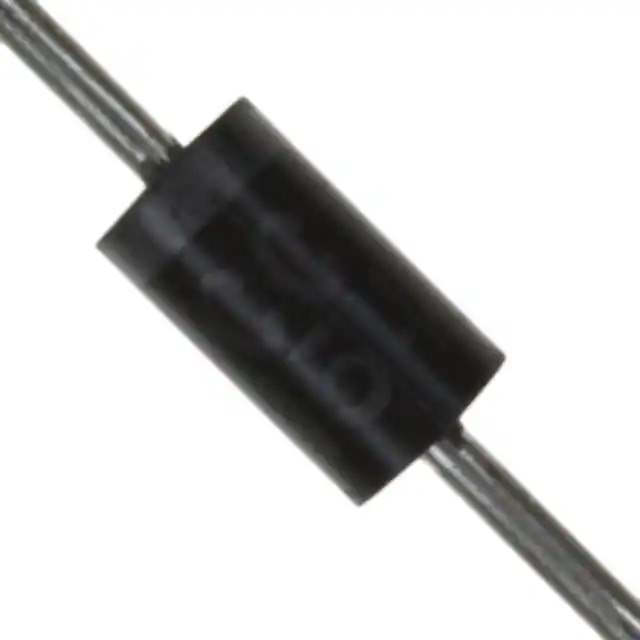

UF5404-AP Real Image
Same model may have multiple batches, images only for reference.

UF5404-AP

Part No UF5404-AP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 400V 3A DO201AD / Diode 400 V 3A Through Hole DO-201AD
Datasheet
UF5404-AP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Micro Commercial Co
Package Tape & Box (TB)
Product Status Obsolete
Technology Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 10 µA @ 400 V
Capacitance @ Vr, F 75pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number UF5404
Standard Package 1,200 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 901869-UF5404-AP
Ultra Librarian 3D Model Ultra Librarian UF5404-AP CAD Model

Description

The 901869-UF5404-AP is a fast recovery rectifier diode designed for use in discrete semiconductor products. With a maximum reverse voltage (Vr) of 400V and an average rectified current (Io) of 3A, this diode is suitable for a wide range of applications.

  • Type: Fast Recovery Rectifier Diode
  • Application: Discrete Semiconductor Products
  • Reverse Voltage (Vr): 400V
  • Average Rectified Current (Io): 3A
  • Forward Voltage (Vf): 1.3V @ 3A
  • Reverse Recovery Time (trr): 50ns
  • Reverse Leakage Current: 10 μA @ 400V
  • Capacitance: 75pF @ 4V and 1MHz
  • Operating Temperature Range: -55°C to 150°C
  • Package Type: DO-201AD, Axial
  • Mounting: Through Hole
  • Supplier Device Package: DO-201AD
  • Status: Obsolete
  • Manufacturer: Micro Commercial Co
