Same model may have multiple batches, images only for reference.

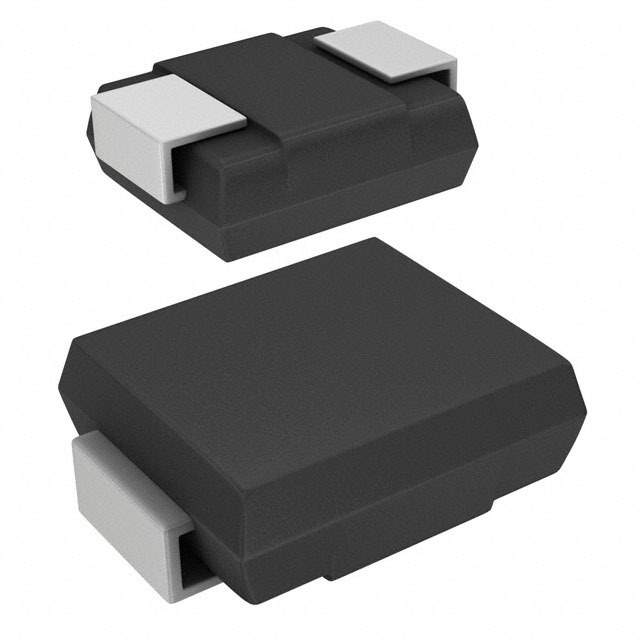

S3A-TP Real Image
Same model may have multiple batches, images only for reference.

S3A-TP

Part No S3A-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Datasheet
S3A-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Micro Commercial Co
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 3 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 50 V
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package SMC (DO-214AB)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number S3A
Other Names S3A-TPMSDKR,S3ATP,S3A-TPMSTR,S3A-TPMSCT,Q2570868
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282429-S3A-TP
Ultra Librarian 3D Model Ultra Librarian S3A-TP CAD Model

Description

The Micro Commercial Co electronic component with the Win Source Part Number 1282429-S3A-TP is a standard recovery >500ns, > 200mA (Io) product that comes in tape & reel packaging.

  • Recovery: >500ns, > 200mA (Io)
  • Packaging: Tape & reel
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 50 V
  • Current - Average Rectified (Io): 3A
  • Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 3 A
  • Operating Temperature - Junction: -55°C ~ 150°C
