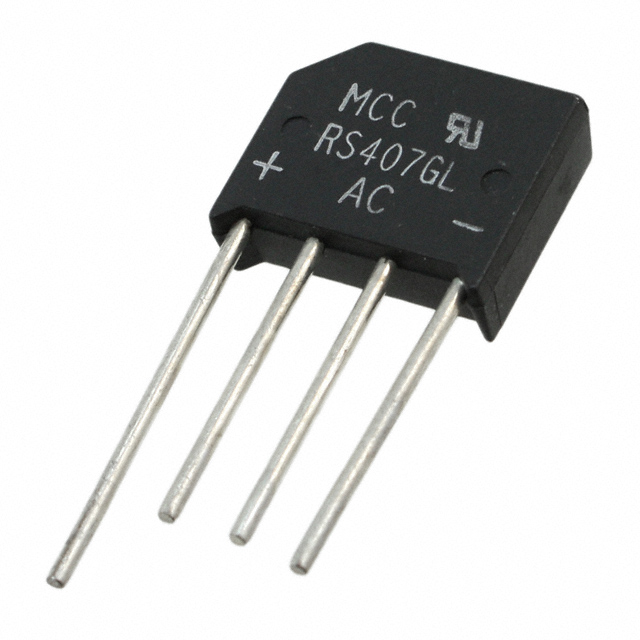

The RS407GL-BP is a single-phase bridge rectifier manufactured by Micro Commercial Components (MCC). A bridge rectifier converts AC (alternating current) voltage to DC (direct current) voltage. The RS407GL-BP is designed for general-purpose rectification applications.

Applications

• Power supplies for electronic devices.
• AC to DC conversion in consumer electronics.
• Battery chargers.
• Adapters and chargers for mobile devices.
• Lighting applications.

Features

• High surge current capability.
• Ideal for printed circuit board assembly.
• Reliable low cost construction utilizing molded plastic technique.
• High temperature soldering guaranteed.
• Glass passivated chip junction.
• RoHS compliant

Benefits

• Simple AC to DC conversion.
• Protection against voltage spikes.
• Cost-effective rectification solution.
• Easy to integrate into existing circuits.
• Suitable for high-temperature soldering processes.

Additional Details

The RS407GL-BP is typically packaged in a molded plastic case with clearly marked polarity. Important specifications include the maximum repetitive peak reverse voltage (VRRM), the maximum RMS voltage (VRMS), the maximum DC blocking voltage (VDC), the maximum average forward rectified current (IF(AV)), and the peak forward surge current (IFSM). Consult the datasheet for specific values and operating characteristics. The glass passivated chip junction contributes to the device's reliability and stability. It is designed to withstand high surge currents, which can occur during power-up or when inductive loads are switched.

When selecting a bridge rectifier, consider the voltage and current requirements of the application, as well as the operating temperature range. The RS407GL-BP offers a reliable and cost-effective solution for general-purpose AC to DC conversion.
