Same model may have multiple batches, images only for reference.

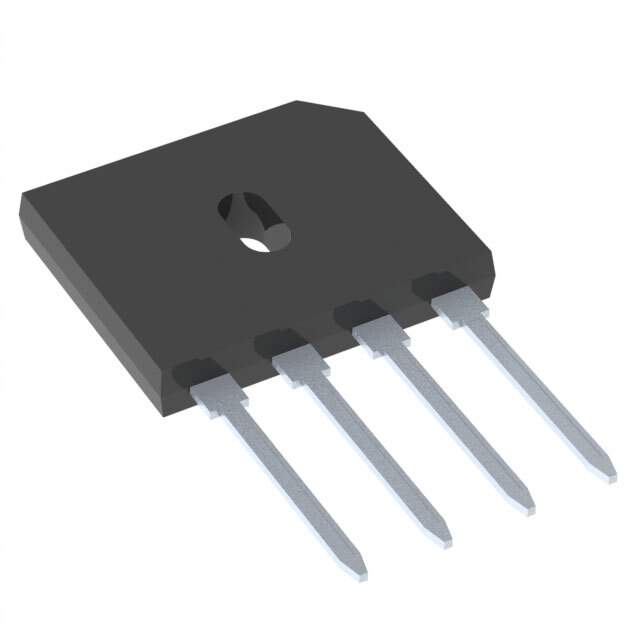

GBU10M-BP Real Image
Same model may have multiple batches, images only for reference.

GBU10M-BP

Part No GBU10M-BP
Manufacturer Micro Commercial Co
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER 10A 1000V GBU / Diode Rectifier Bridge Single 1KV 10A 4-Pin Case GBU Bulk/Tube
Datasheet
GBU10M-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 5A
Current - Reverse Leakage @ Vr 5μA @ 1000V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, GBU
Manufacturer Package GBU
Win Source Part Number 775015-GBU10M-BP
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name GBU10M
Introduction Date November 30, 2003
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian GBU10M-BP CAD Model

Description

The Micro Commercial Co GBU10M-BP is a single-phase standard diode.

  • Peak reverse voltage: 1000V
  • Forward voltage: 1.1V @ 5A
  • Average rectified current: 10A
  • Reverse leakage current: 5μA @ 1000V
  • Package: 4-SIP, GBU
  • Temperature Range: -55°C to 150°C (TJ)
  • Halogen-free: compliant
