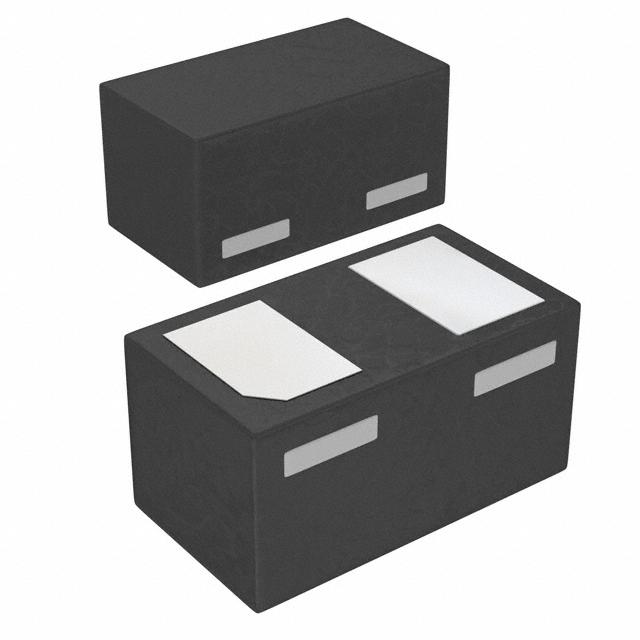

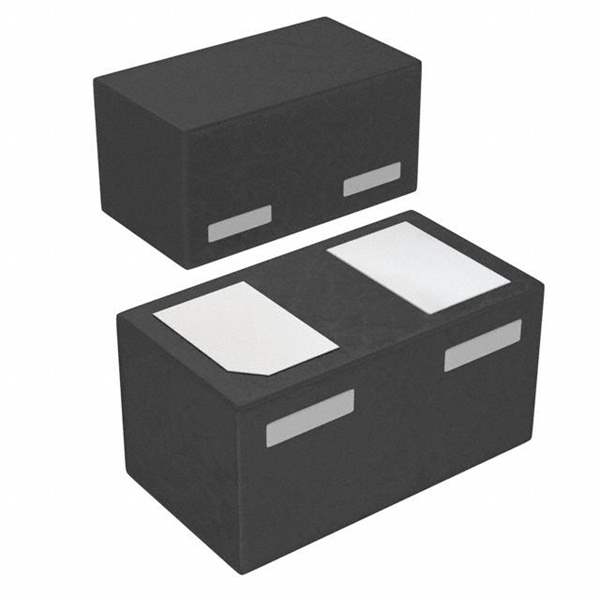

ESDBL5V0AE1-TP Micro Commercial Co
Same model may have multiple batches, images only for reference.

ESDBL5V0AE1-TP

Part No ESDBL5V0AE1-TP
Manufacturer Micro Commercial Co
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC 0201
Datasheet
ESDBL5V0AE1-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 5.8V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 5A (8/20μs)
Power Dissipation - Pd 62.5W
Applications General Purpose
Capacitance @ Frequency 10pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 0201
Win Source Part Number 1037161-ESDBL5V0AE1-TP
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in RF Communications, Industrial, Wireless, Defence, Military & Aerospace, Sensing & Instrumentation, Communications & Networking
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian ESDBL5V0AE1-TP CAD Model

Description

The ESDBL5V0AE1-TP, manufactured by Micro Commercial Co, is a zener diode that is designed for general-purpose applications.

  • Operating Temperature Range: -55°C to 150°C
  • Package: reel package with 10k pieces per package
  • Supply and Demand Status: sufficient
  • Suitable For: use in various applications, including those in the RF communications, industrial, wireless, defense, military and aerospace, sensing and instrumentation, and communications and networking sectors
