Same model may have multiple batches, images only for reference.

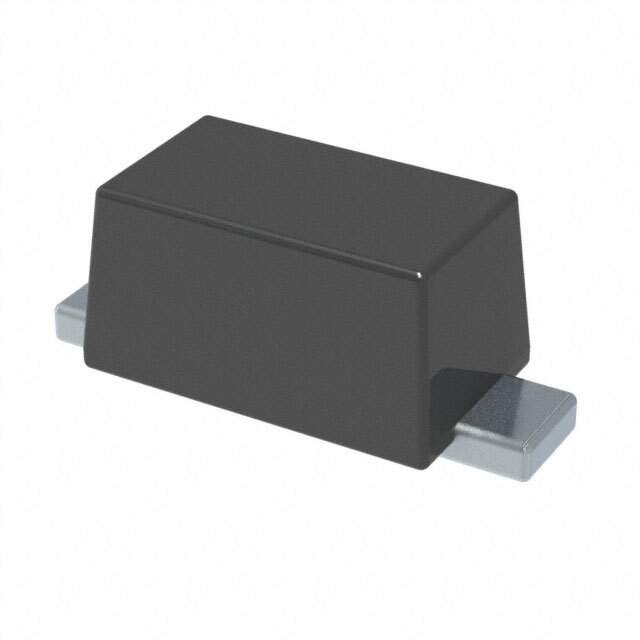

ESD5V0D7-TP-HF Real Image
Same model may have multiple batches, images only for reference.

ESD5V0D7-TP-HF

Part No ESD5V0D7-TP-HF
Manufacturer Micro Commercial Co
Catalog TVS - Diodes
Description TVS DIODE 5VWM 13.3VC SOD723
Datasheet
ESD5V0D7-TP-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Micro Commercial Co
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6.2V
Max Clamping Voltage 13.3V
Power Dissipation - Pd 117W
Applications General Purpose
Capacitance @ Frequency 65pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-723
Win Source Part Number 1037069-ESD5V0D7-TP-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian ESD5V0D7-TP-HF CAD Model

Description

The Micro Commercial Co ESD5V0D7-TP-HF is a unidirectional zener diode designed for general purpose applications.

  • Type: Unidirectional Zener Diode
  • Application: General Purpose
  • Capacitance: 65pF @ 1MHz
  • Maximum Clamping Voltage: 13.3V
  • Power Dissipation: 117W
  • Temperature Range: -55°C to 150°C
  • Package Type: SOD-723
  • Stand-off Voltage: 5V
  • Package Quantity: 8k pieces
