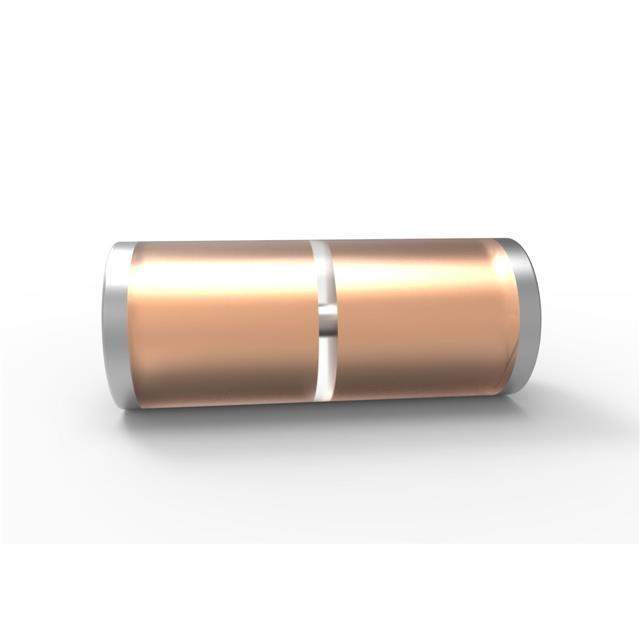

DL5249B-TP Real Image
Same model may have multiple batches, images only for reference.

DL5249B-TP

Part No DL5249B-TP
Manufacturer Micro Commercial Co
Catalog Diodes - Zener - Single
Description DIODE ZENER 19V 500MW MINI MELF / Zener Diode 19 V 500 mW ±5% Surface Mount Mini MELF
Datasheet
DL5249B-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Manufacturer Micro Commercial Co
Packaging Reel - TR
Product Status Obsolete
Voltage - Zener (Nom) (Vz) 19 V
Tolerance ±5%
Power - Max 500 mW
Impedance (Max) (Zzt) 23 Ohms
Current - Reverse Leakage @ Vr 100 nA @ 14 V
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 200 mA
Temperature Range - Operating -65°C ~ 175°C
Mounting Surface Mount
Case / Package DO-213AC, MINI-MELF, SOD-80
Supplier Device Package Mini MELF
Base Product Number DL5249
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Other Part Number DL5249B-TPMSTR,DL5249B-TPMSCT,DL5249B-TPMSDKR,DL5249BTP
Standard Package 2,500
Win Source Part Number 1325428-DL5249B-TP
Ultra Librarian 3D Model Ultra Librarian DL5249B-TP CAD Model

Description

The Micro Commercial Co 1325428-DL5249B-TP is a diode that is used for single zener applications.

  • Packaging: Reel - TR
  • Standard Package: 2,500
  • Mounting Type: Surface Mount
  • Tolerance: ±5 percent
  • Maximum Power: 500 mW
  • Voltage Forward: 1.1 V @ 200 mA
  • Current Reverse Leakage @ Vr: 100 nA @ 14 V
  • Voltage Zener: 19 V
  • Impedance: 23 Ohms
  • Supplier Device Package: mini MELF
  • Temperature Range: -65°C ~ 175°C
  • Case or Package: DO-213AC, MINI-MELF, SOD-80
  • Status: Obsolete
  • ROHS3 Compliant: True
