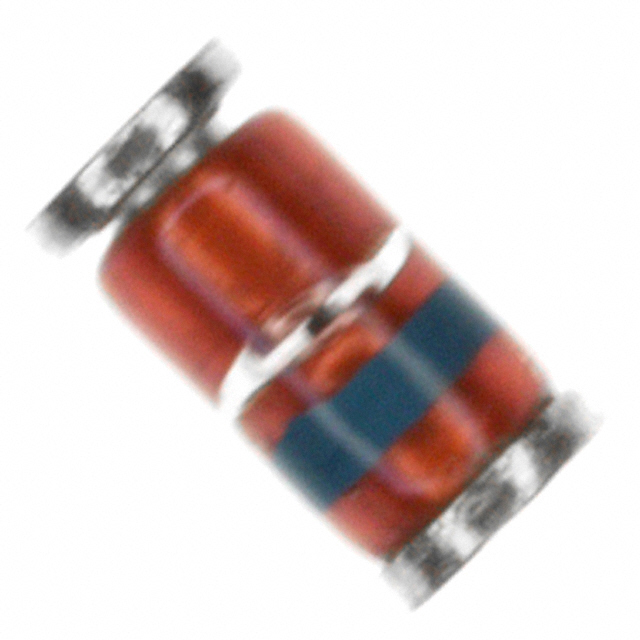

DL4742A-TP Micro Commercial Co
Same model may have multiple batches, images only for reference.

DL4742A-TP

Part No DL4742A-TP
Manufacturer Micro Commercial Co
Catalog Diodes - Zener - Single
Description DIODE ZENER 12V 1W MELF
Datasheet
DL4742A-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 12V
Tolerance ±5%
Maximum Power Dissipation 1W
Impedance (Max) (Zzt) 9 Ohm
Current - Reverse Leakage @ Vr 5μA @ 9.1V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 200mA
Temperature Range - Operating -65°C to 175°C
Mounting SMD (SMT)
Case / Package MELF
Win Source Part Number 000695-DL4742A-TP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian DL4742A-TP CAD Model

Description

DL4742A-TP Zener Diode

The DL4742A-TP is a high-quality Zener diode designed for reliable voltage regulation and efficient circuit operation. This diode offers a nominal Zener voltage of 12V, ideal for a variety of applications.

  • Voltage Regulation in DC Circuits
  • Protection in Power Supplies
  • Reference Elements in Amplifiers

Features and Benefits:

  • Low Power Loss - Ensures high efficiency in electronic circuits
  • Temperature Stability - Maintains performance across varying ranges
  • Easy to Mount - Standard packaging simplifies installation process

Additional Details: Manufactured with precision, the DL4742A-TP is designed to meet the needs of efficient power management in modern electronic systems.
