Same model may have multiple batches, images only for reference.

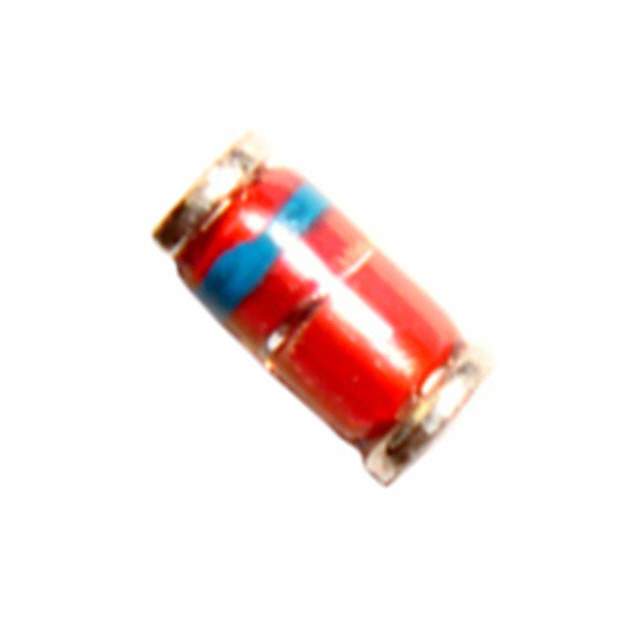

DL4005-TP Real Image
Same model may have multiple batches, images only for reference.

DL4005-TP

Part No DL4005-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 1A MELF
Datasheet
DL4005-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5μA @ 600V
Mounting SMD (SMT)
Case / Package MELF
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 1033441-DL4005-TP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian DL4005-TP CAD Model

Description

The DL4005-TP is a standard diode from Micro Commercial Co. with a voltage - DC reverse (Vr) (Max) of 600V and an average rectified current (Io) of 1A. It has a voltage - forward (Vf) (Max) @ If of 1.1V @ 1A and a current - reverse leakage @ Vr of 5μA @ 600V. The DL4005-TP has a standard recovery of >500ns, > 200mA (Io) and is available in a MELF package. It can operate in a temperature range of -65°C to 150°C. This product is obsolete (EOL) and comes in a reel package with 5,000 pieces.
