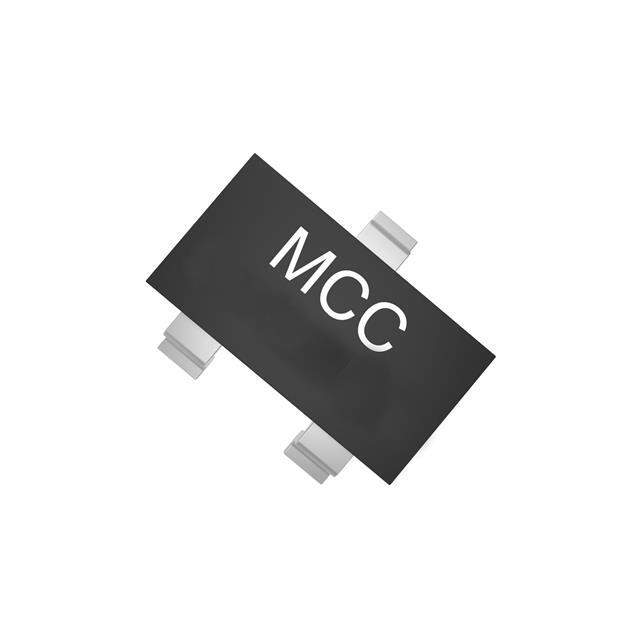

BAV70-TP Real Image
Same model may have multiple batches, images only for reference.

BAV70-TP

Part No BAV70-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 75V 150MA SOT23
Datasheet
BAV70-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 75V
Current - Average Rectified (Io) (per Diode) 150mA
Voltage - Forward (Vf) (Max) @ If 855mV @ 10mA
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 2.5μA @ 75V
Operating Temperature - Junction -55°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-23
Win Source Part Number 097154-BAV70-TP
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian BAV70-TP CAD Model

Description

Features and Benefits

  • High efficiency, low loss design
  • Thermal stability over a wide range
  • Durable package for various environments

Applications and Projects

  • Converter circuits
  • Power management
  • Switching power supplies

The BAV70-TP is designed to offer high efficiency and low power loss, making it suitable for converter circuits and power management applications. Its thermal stability and durable design ensure reliable performance across various environmental conditions.
