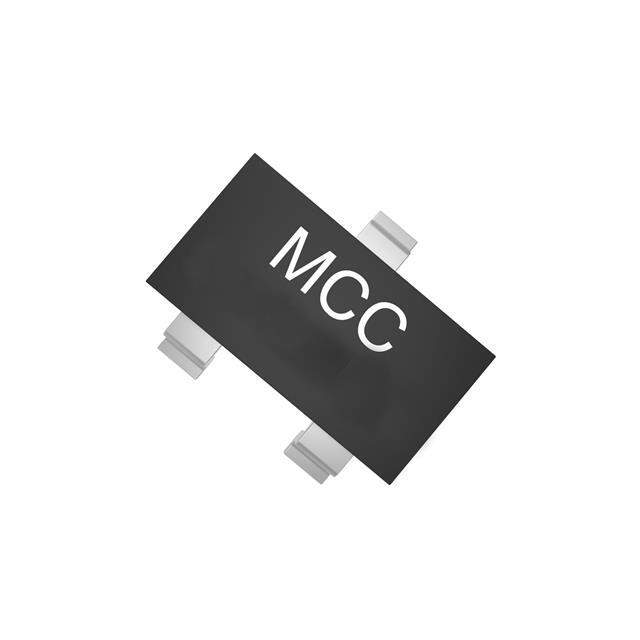

BAV23A-TP Real Image
Same model may have multiple batches, images only for reference.

BAV23A-TP

Part No BAV23A-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description 350MWSMALLSIGNALSWITCHINGDIODESS / Diode Array 1 Pair Common Anode Standard 200 V 225mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
Datasheet
BAV23A-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Micro Commercial Co
Package Tape & Reel
Diode Configuration 1 Pair Common Anode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) (per Diode) 225mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 200 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 100 nA @ 250 V
Operating Temperature - Junction -65°C ~ 150°C
Mounting SMD (SMT)
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Base Product Number BAV23
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Names BAV23A-TPMSDKR,BAV23A-TPMSTR,BAV23A-TPMSCT
Standard Package 3,000
Win Source Part Number 1048286-BAV23A-TP
Ultra Librarian 3D Model Ultra Librarian BAV23A-TP CAD Model

Description

The BAV23A-TP is a standard type electronic component designed for rectifier arrays.

  • Voltage DC Reverse (Vr) (Max): 200 V
  • Voltage Forward: 1.25 V @ 200 mA
  • Reverse Recovery Time (trr): 50 ns
  • Current Reverse Leakage @ Vr: 100 nA @ 250 V
  • Current Average Rectified (Io) (per diode): 225mA (DC)
  • Operating Temperature Range: from -65°C to 150°C
