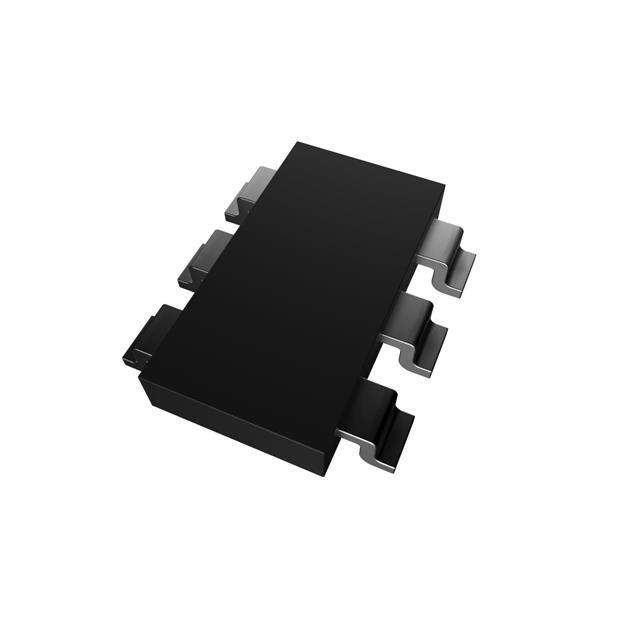

BAS40TW-TP Real Image
Same model may have multiple batches, images only for reference.

BAS40TW-TP

Part No BAS40TW-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 40V SOT363 / 200mW 40Volt Schottky Barrier Diode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Micro Commercial Co
Packaging Reel
Diode Configuration 3 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 40V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Maximum) at If 1V at 40mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage at Vr 200nA at 30V
Operating Temperature - Junction -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 6-TSSOP, SC-88, SOT-363
Supplier Device Package SOT-363
Part Number Series BAS40TW
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803618-BAS40TW-TP
Ultra Librarian 3D Model Ultra Librarian BAS40TW-TP CAD Model

Description

The Micro Commercial Co BAS40TW-TP is a Schottky diode with 3 independent diode configurations.

  • Voltage DC Reverse: 40V
  • Forward Voltage: 1V @ 40mA
  • Average Rectified Current Per Diode: 200mA
  • Reverse Leakage @ Vr: 200nA @ 30V
  • Package: SOT-363
  • Temperature Range: -55°C to 125°C
  • Supply and Demand Status: Balance
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (unlimited)
  • Part Number Series: BAS40TW
