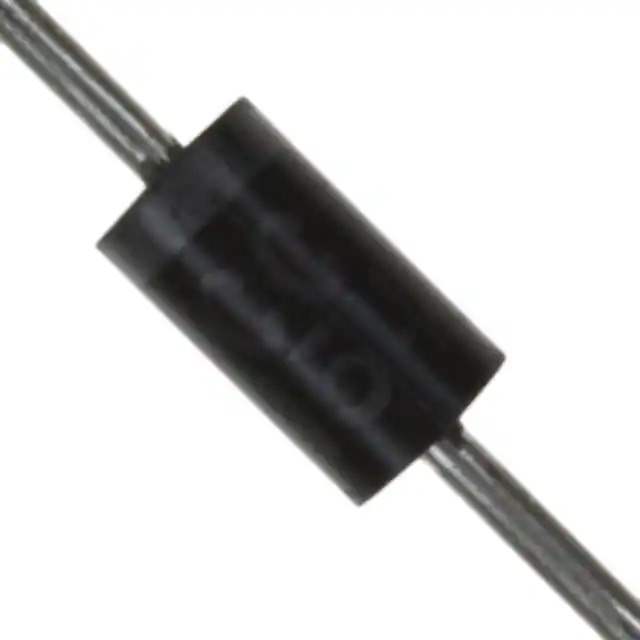

1N5400-AP Real Image
Same model may have multiple batches, images only for reference.

1N5400-AP

Part No 1N5400-AP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 50V 3A DO201AD / Diode 50 V 3A Through Hole DO-201AD
Datasheet
1N5400-AP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Micro Commercial Co
Package Tape & Box (TB)
Product Status Obsolete
Technology Standard
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1 V @ 3 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 50 V
Capacitance @ Vr, F 40pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number 1N5400
Standard Package 1,200 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 905710-1N5400-AP
Ultra Librarian 3D Model Ultra Librarian 1N5400-AP CAD Model

Description

The 1N5400-AP is a standard recovery rectifier diode suitable for general-purpose rectification applications.

  • Manufacturer: Micro Commercial Co
  • Maximum DC Reverse Voltage: 50V
  • Average Rectified Current: 3A
  • Forward Voltage: 1V @ 3A
  • Reverse Leakage Current: 5μA @ 50V
  • Capacitance: 40pF @ 4V and 1MHz
  • Package: DO-201AD axial package
  • Mounting: Through-hole mounting
  • Series: 1N5400 series
