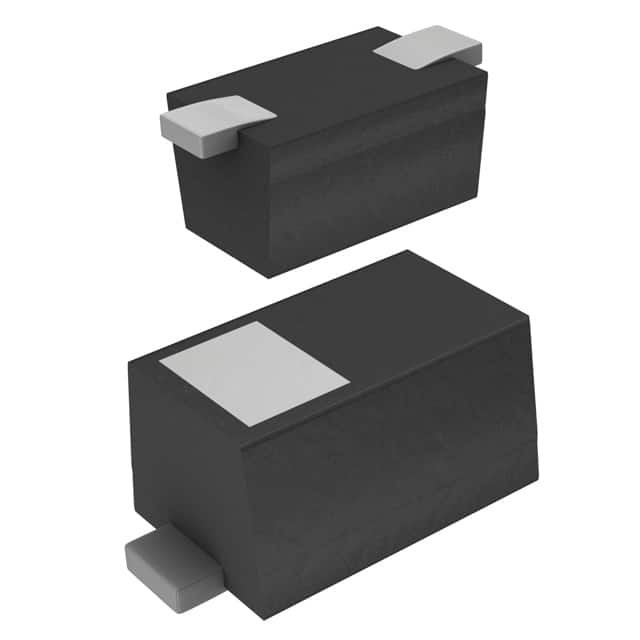

Same model may have multiple batches, images only for reference.
1N4448X-TP
Same model may have multiple batches, images only for reference.

1N4448X-TP

Part No 1N4448X-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 75V 250MA SOD523 / Diode 75 V 250mA Surface Mount SOD-523
Datasheet
1N4448X-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Micro Commercial Co
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 75 V
Current - Average Rectified (Io) 250mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 2.5 µA @ 75 V
Capacitance @ Vr, F 4pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case SC-79, SOD-523
Supplier Device Package SOD-523
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number 1N4448
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 854308-1N4448X-TP
Ultra Librarian 3D Model Ultra Librarian 1N4448X-TP CAD Model

Description

The 1N4448X-TP is a fast recovery single diode rectifier designed for standard applications from an unspecified manufacturer.

  • Maximum Reverse Voltage: 75V
  • Average Rectified Current: 250mA
  • Forward Voltage: 1.25V @ 150mA
  • Reverse Recovery Time: 4ns
  • Package: SC-79, SOD-523
  • Mounting: Surface Mountable
  • Status: Active
