The MIC2015-0.5YMLTR is a high-side power distribution switch designed for USB power management and general power distribution applications. This switch features current limiting and thermal shutdown protection to safeguard the system from overcurrent and overtemperature conditions. Its low on-resistance minimizes voltage drop and power dissipation, making it ideal for battery-powered devices and other power-sensitive applications.

Applications:

• USB Power Distribution: Used to control power to USB ports, protecting the host system from overcurrent conditions.
• Hot-Swap Applications: Enables safe insertion and removal of devices without powering down the system.
• Power Management: Used in power management circuits to control power distribution to various subsystems.
• Battery-Powered Devices: Optimizes power consumption in battery-powered devices, extending battery life.
• Industrial Equipment: Provides reliable power distribution in industrial control systems.

Features:

• High-Side Switch: Controls power to a load connected to the positive supply rail.
• Current Limiting: Limits the output current to a safe level, protecting the system from overcurrent conditions.
• Thermal Shutdown: Shuts down the switch if the junction temperature exceeds a specified limit, preventing damage to the IC.
• Low On-Resistance: Minimizes voltage drop and power dissipation.
• Enable Input: Allows external control of the switch.
• Fault Flag Output: Indicates overcurrent or overtemperature conditions.
• Small Package: Available in a compact package for space-saving designs.

Benefits:

• System Protection: Protects the system from overcurrent and overtemperature conditions.
• Reduced Power Dissipation: Low on-resistance minimizes power dissipation, improving energy efficiency.
• Easy to Use: Simple to integrate into existing designs.
• Improved Reliability: Thermal shutdown protection enhances system reliability.
• Cost-Effective Solution: Provides a high-performance power distribution switch at a competitive price.
• Extended Battery Life: Optimizes power consumption, extending battery life in portable devices.

Additional Details:

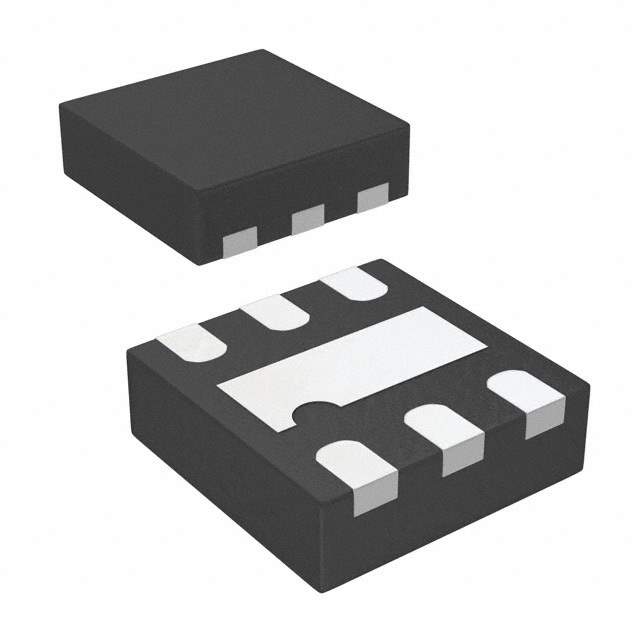

The MIC2015-0.5YMLTR features a typical on-resistance of 80 mΩ. The current limit is set to 0.5A. The thermal shutdown temperature is typically 150°C. The enable input is TTL compatible. The fault flag output is an open-drain output that requires an external pull-up resistor. The device is typically packaged in a MLF (Micro Lead Frame) package. It operates over a wide supply voltage range. The MIC2015-0.5YMLTR is commonly used in USB power distribution applications to protect the host system from damage caused by faulty USB devices.
