Same model may have multiple batches, images only for reference.

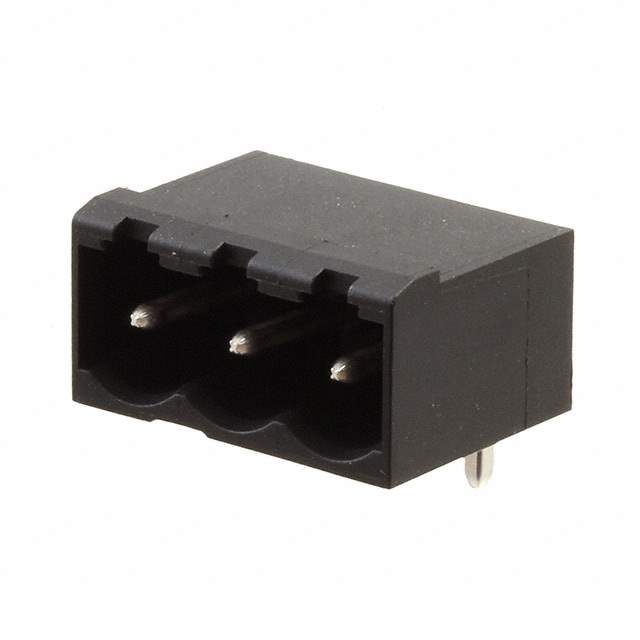

31230103 Real Image
Same model may have multiple batches, images only for reference.

31230103

Part No 31230103
Manufacturer METZ CONNECT USA Inc.
Catalog Headers, Plugs and Sockets
Description PIN HEADER, RIGHT ANGLE, SHROUDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr METZ CONNECT USA Inc.
Package Bulk
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - UL 15 A
Voltage - UL 300 V
Color Black
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.136" (3.45mm)
Insulation Height 0.331" (8.40mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1106543-31230103
Ultra Librarian 3D Model Ultra Librarian 31230103 CAD Model

Description

The 1106543-31230103 is a terminal block header with male pins.

  • Positions per Level: 3
  • Number of Levels: 1
  • Pitch: 0.200" (5.08mm)
  • Orientation: Right Angle
  • Termination Style: Solder
  • Current Rating: 15A
  • Voltage Rating: 300V
  • Material: Polyamide (PA66)
  • Flammability Rating: UL94 V-0
  • Mounting: Through-Hole
  • Operating Temperature: -40°C to 105°C
  • Status: Active
  • Manufacturer: METZ CONNECT USA Inc.
