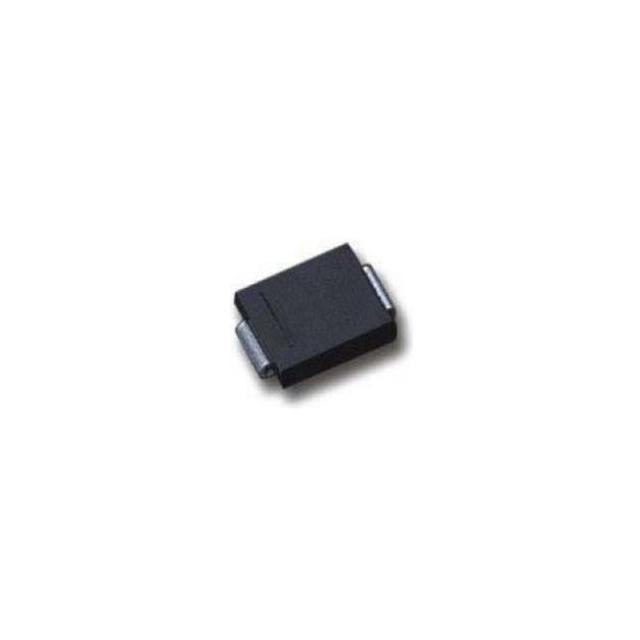

SMDJ60C Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMDJ
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 60V
Voltage - Breakdown (Min) 66.7V
Voltage - Clamping (Max) @ Ipp 107V
Current - Peak Pulse (10/1000µs) 28.04A
Power - Peak Pulse 3000W (3kW)
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AB (SMC)
Other Names 2997-SMDJ60CTR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299897-SMDJ60C
Ultra Librarian 3D Model Ultra Librarian SMDJ60C CAD Model

Description

The Meritek SMDJ60C is a Zener diode that is used in circuit protection applications.

  • Voltage Reverse Standoff: 60V
  • Voltage Breakdown: 66.7V
  • Channel: Bidirectional
  • Power Peak Pulse: 3000W
  • Win Source Part Number: 1299897-SMDJ60C
