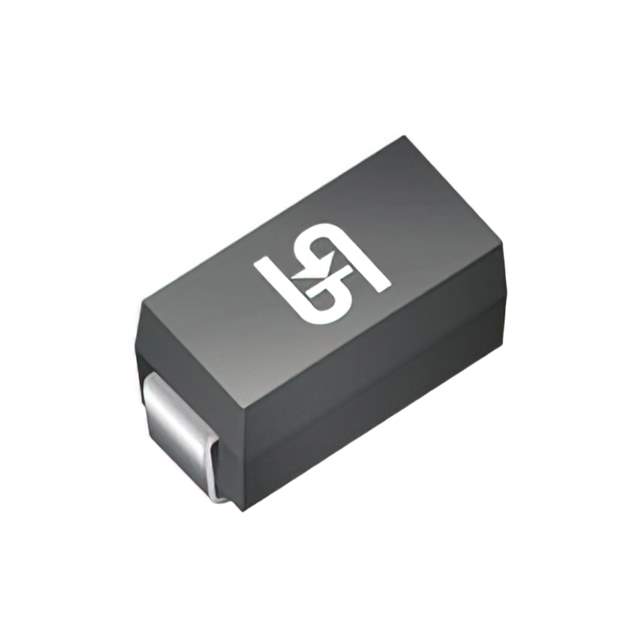

SMBJ12 Real Image
Same model may have multiple batches, images only for reference.

SMBJ12

Part No SMBJ12
Manufacturer Meritek
Catalog TVS - Diodes
Datasheet
SMBJ12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMBJ
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Max) @ Ipp 22V
Current - Peak Pulse (10/1000µs) 27.27A
Power - Peak Pulse 600W
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AA (SMB)
Other Names 2997-SMBJ12TR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299943-SMBJ12
Ultra Librarian 3D Model Ultra Librarian SMBJ12 CAD Model

Description

The 1299943-SMBJ12 is a Zener type circuit protection component that belongs to the TVS-Diodes category.

  • Series: SMBJ
  • Package: Tape and reel
  • Purpose: General
  • Standard Package: 20 pieces
  • Mounting: SMD (SMT) technology
  • Channel: Unidirectional
  • Voltage - Reverse Standoff (typ): 12V
  • Voltage - Breakdown (min): 13.3V
  • Voltage - Clamping (max) @ Ipp: 22V
  • Power - Peak Pulse: 600W
  • Current - Peak Pulse (10/1000µs): 27.27A
  • Package/Case: DO-214AA (SMB)
  • REACH: Not affected
  • Demand: Not in high demand
  • MSL Level: 1 (unlimited shelf life)
