Same model may have multiple batches, images only for reference.

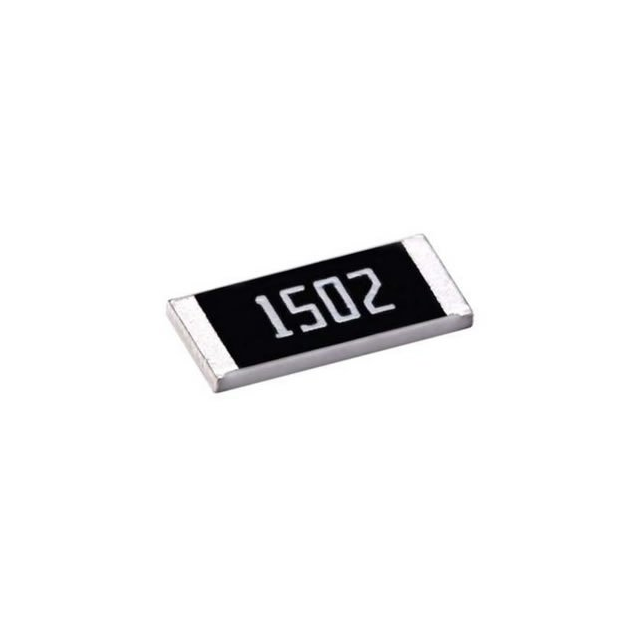

CR02391J Real Image
Same model may have multiple batches, images only for reference.

CR02391J

Part No CR02391J
Manufacturer Meritek
Catalog Chip Resistor - Surface Mount
Description RES SMD 390 OHM 5% 3/4W 2010 / 390 Ohms ±5% 0.75W, 3/4W Chip Resistor 2010 (5025 Metric) Thick Film
Datasheet
CR02391J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Meritek
Series CR
Package Tape & Reel (TR)
Resistance 390 Ohms
Tolerance ±5%
Power (Watts) 0.75W, 3/4W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2010 (5025 Metric)
Dimension 0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2997-CR02391JTR
Standard Package 4,000
Win Source Part Number 1129846-CR02391J
Ultra Librarian 3D Model Ultra Librarian CR02391J CAD Model

Description

The CR02391J is a chip resistor manufactured by Meritek.

  • Type: Thick Film Resistor
  • Resistance: 390 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.75W
  • Package Size: 2010 (5025 Metric)
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
