Same model may have multiple batches, images only for reference.

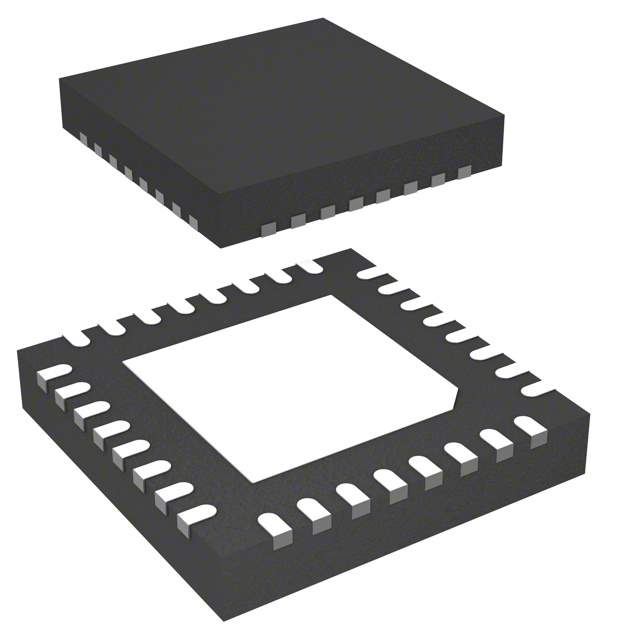

TH71221ELQ-BAA-000-RE Real Image
Same model may have multiple batches, images only for reference.

TH71221ELQ-BAA-000-RE

Part No TH71221ELQ-BAA-000-RE
Manufacturer Melexis Technologies NV
Catalog RF Receivers
Description IC RF TXRX ISM<1GHZ 32VFQFN / IC RF TxRx Only General ISM < 1GHz 300MHz ~ 930MHz 32-VFQFN Exposed Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Melexis Technologies NV
Package Tape & Reel
Product Status Obsolete
Type TxRx Only
RF Family/Standard General ISM < 1GHz
Modulation ASK, FSK
Frequency 300MHz ~ 930MHz
Data Rate (Max) 115Kbps
Power - Output 10dBm
Sensitivity -107dBm
Serial Interfaces SPI
Voltage - Supply 2.2V ~ 5.5V
Current - Receiving 6.1mA ~ 10.8mA
Current - Transmitting 13.2mA ~ 26.9mA
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names TH71221ELQ-BAA-000-REDKR,TH71221ELQ-BAA-000-RECT,TH71221ELQ-BAA-000-RE-ND,TH71221ELQ-BAA-000-RETR,TH71221.2ELQ
Standard Package 5,000
Win Source Part Number 969244-TH71221ELQ-BAA-000-RE
Ultra Librarian 3D Model Ultra Librarian TH71221ELQ-BAA-000-RE CAD Model

Description

The Melexis Technologies NV TH71221ELQ-BAA-000-RE is an RF transceiver IC from Melexis Technologies NV.

  • Type: TxRx only
  • Frequency Range: 300MHz to 930MHz
  • Power Output: 10dBm
  • Sensitivity: -107dBm
  • Data Rate: Up to 115Kbps
  • Voltage Supply: 2.2V to 5.5V
  • Package Type: 32-VFQFN Exposed Pad
  • Standard Package: 5000
