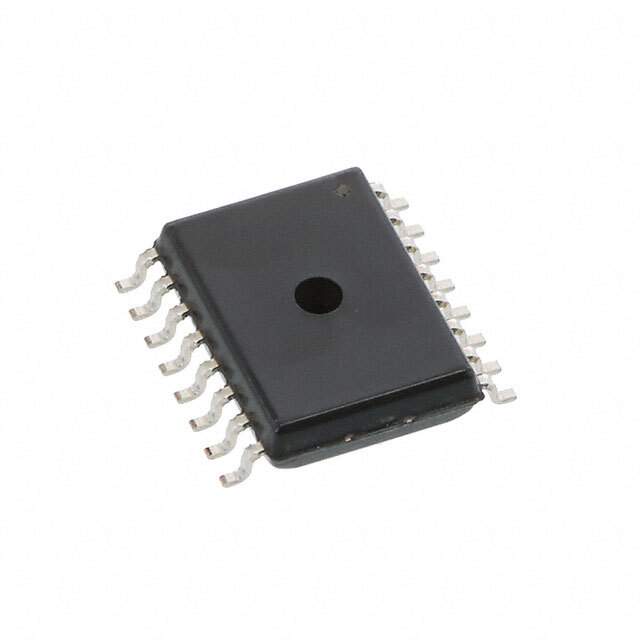

MLX90821LXG-DBA-005-SP Real Image
Same model may have multiple batches, images only for reference.

MLX90821LXG-DBA-005-SP

Part No MLX90821LXG-DBA-005-SP
Manufacturer Melexis Technologies NV
Catalog Pressure Sensors, Transducers
Description IC SENSOR PRESSURE ANALOG 16SOIC
Datasheet
MLX90821LXG-DBA-005-SP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 38 Weeks
Features Pressure Sensor -0.72PSI ~ 0.72PSI (-4.98kPa ~ 4.98kPa) Differential - 0.5 V ~ 4.5 V 16-SOIC (0.295", 7.50mm Width) Exposed Pad
Manufacturer Melexis Technologies NV
Package Tray
Operating Temperature Range -40°C ~ 150°C
Package 16-SOIC (0.295", 7.50mm Width) Exposed Pad
Case / Package 16-SOIC
Family Name MLX90821
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 39
Popularity High
Supply and Demand Status Balance
Win Source Part Number 927315-MLX90821LXG-DBA-005-SP
Ultra Librarian 3D Model Ultra Librarian MLX90821LXG-DBA-005-SP CAD Model

Description

The MLX90821LXG-DBA-005-SP is a pressure sensor that operates in an operating temperature range of -40°C to 150°C.

  • Pressure Range: -0.72PSI to 0.72PSI (-4.98kPa to 4.98kPa)
  • Output Voltage: 0.5 V to 4.5 V
  • Package: 16-SOIC (0.295", 7.50mm Width) Exposed Pad
  • Mounting: Surface mounted
  • Family Name: MLX90821
  • Category: Sensors
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • Quantity per Package: 39
  • MSL Level: 3 (168 hours)
  • Estimated Production Lead Time: 38 weeks
  • REACH: REACH unaffected
  • HTSUS: 8542.39.0001
